Automatic Tin Can Seamer Sealing Machine
Product Description

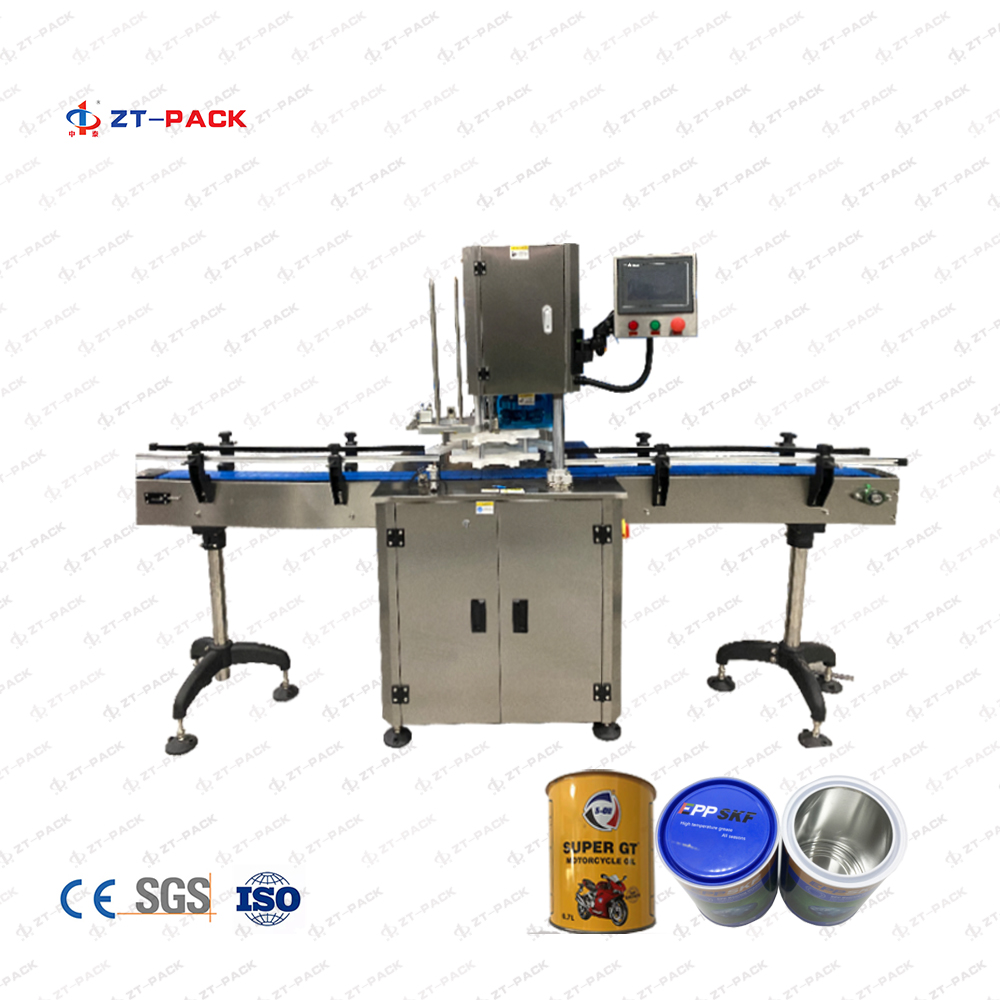

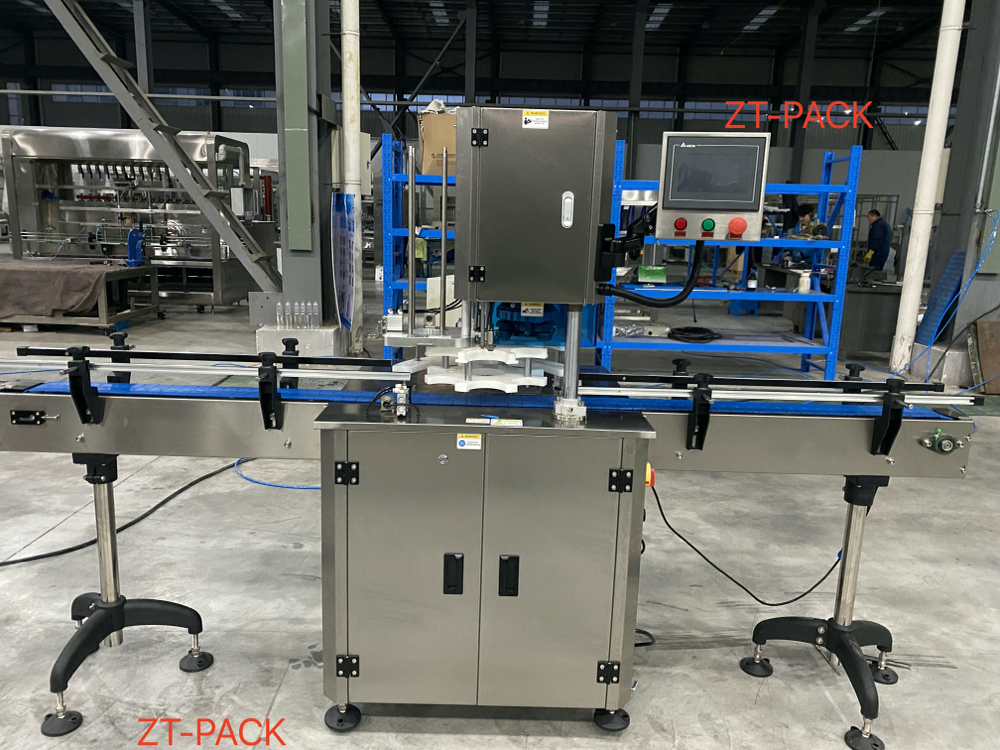

Automatic Tin Can Seamer Sealing Machine
This machine is applicable for sealing of various tin cans, aluminum cans, paper cans, plastic cans and all kinds of round cans.
Performance features:
1. Can and cap inter-control mechanism, when there have cans entering, the caps drop to the can, no cans, no caps.
2. Simple control panel design, convenient and easy to adjust.
3. High production capacity, high grade automation, it is an ideal device for can sealing line.
4. Sealing roll wheel adopts SS304, hard and wear, rustless and with good sealing quality.
Characteristics:
1. Unmanned operation, full automatic drop cap and sealing cap.
2. Can without rotating while sealing, to protect the product and can, high precision, sealing quality is superior than the domestic same product.
3. The production capacity is 2--3 times of semi-automatic can sealing machine, and it adopts full automatic cap drop and sealing device, save time and manual work, and improve production efficiency.
4. Applicable to tin can, aluminum alloy can, paper can and other round type pop-top can, easy and convenient operation, it is an ideal device for food, beverage, medical and chemical industry, etc.
5. Suitable for plastic pop-top can, metal can, paper can or aluminum can or other round can sealing.
Technical Parameters:
|
Material
|
Stainless steel 304
|
|

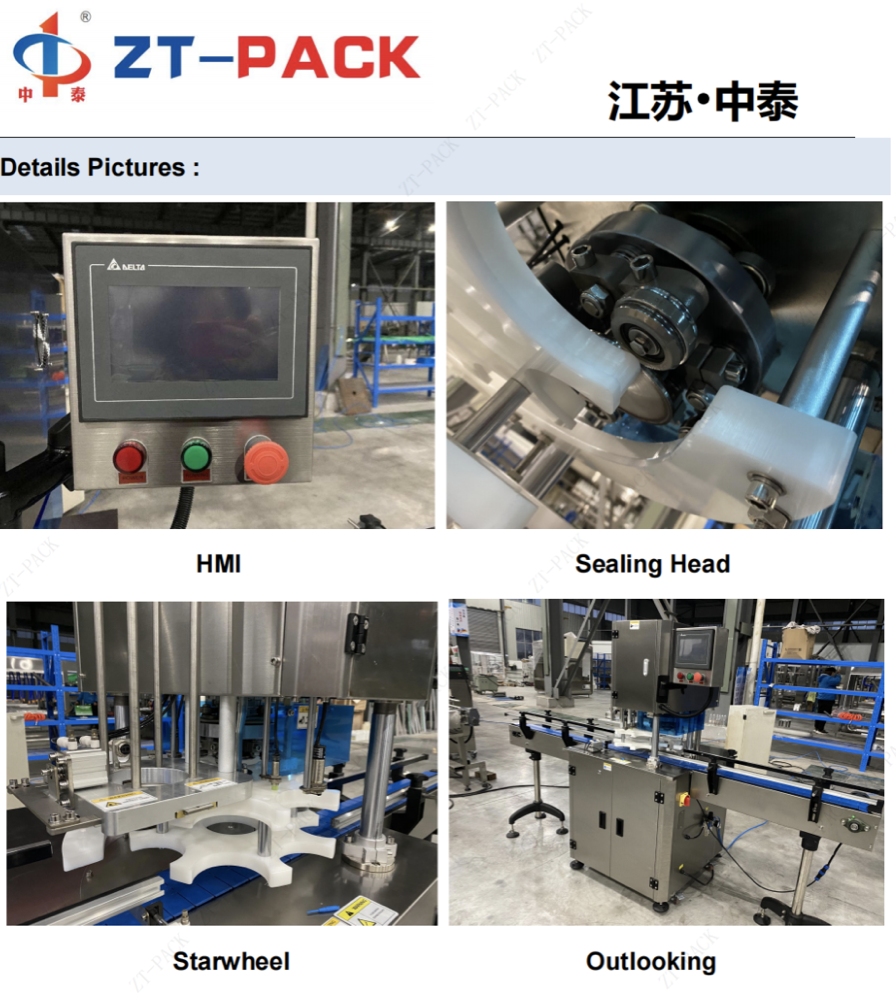

Sealing Head
|
2 Heads
|
|
Number of seaming roller:
|
4 (2 for first operation, 2 for second operation)
|
|
Sealing speed
|
68~80 cans / min
|
|
Sealing height
|
50~220mm (adjustable)
|
|
Applicable can diameter
|
35~130mm
|
|
Air sourse
|
0.6Mpa
|
|
Power
|
2KW
|
|
Weight
|
500KG
|
|
Working humidity
|
35-85%
|
|
Size
|
L2650*W110*H1650MM
|
|
Voltage
|
380V,60HZ
|
|
Conveyor
|
Height 850+-50mm
|
|
Servo motor control ,Servo motor : Delta
PLC : Delta
Touch Screen : Delta
|
|
