FG-4 Full-automatic rotary aluminum screw capping machine
Product Description

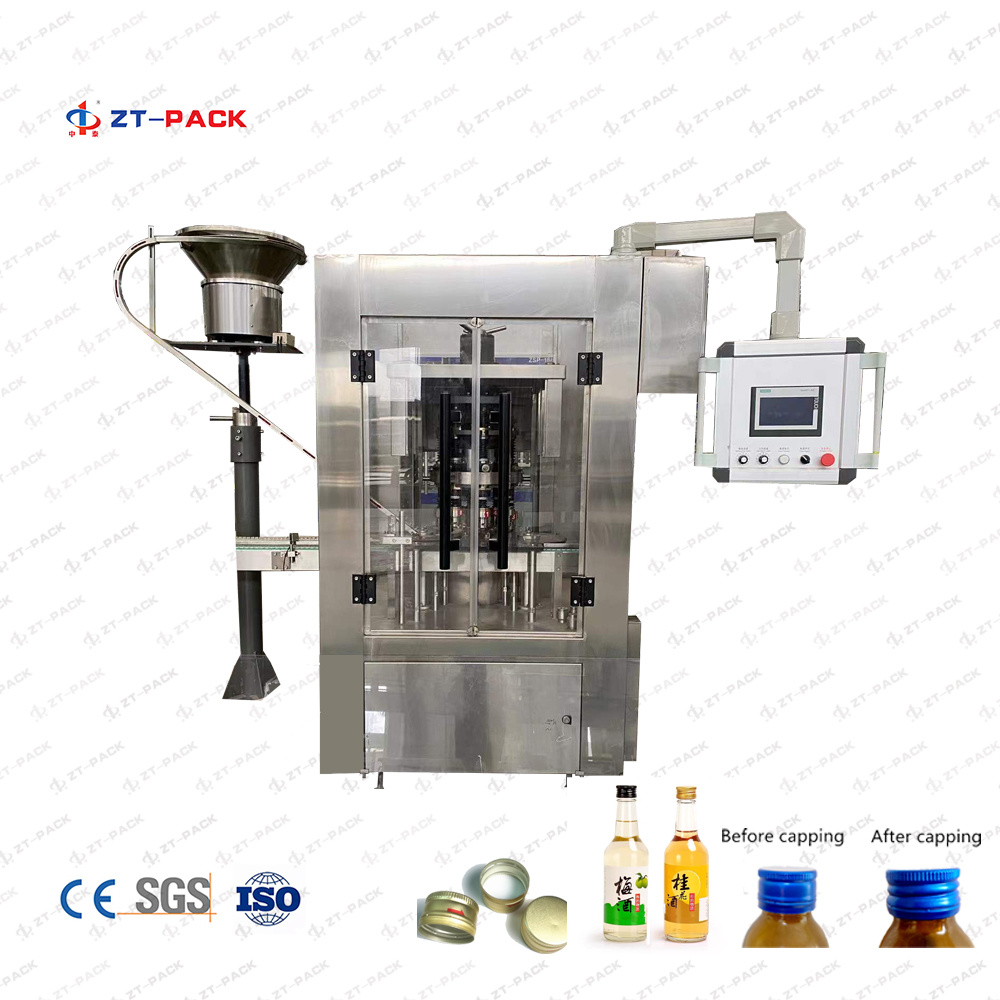

Full Automatic Rotary Aluminum Cap Screw Capping Machine
Type: FG-4
Machine Description ：
Aluminum Cap Crimping Machine is suitable for closing aluminum caps PLC control system, rotary type structure, the machine is with function of automatic cap feeding ,loading and crimping.
The crimping head is made up by strong stainless steel, by 4-wheel balance principle design, the crimping force is uniformly which makes good sealing effect.
Bottle feeding star wheel equip with clutch device, machine stops automatically if bottle get stuck.
And there is automatic positioning device for bottle neck which assure the capping accuracy and stability.
The containers are fed onto the rotary screw capper and are separated and positioned on individual capping stations. The caps are presorted and fed on the sliding table of the machine. The continuously rotating chucks are lowered over the cap to pick up and secure the caps, then apply the caps to the containers. When the preset applied torque value is achieved, the magnetic clutch disengages, the chuck releases the cap and the closed container is discharged from the machine.
With 4 mechanical hands ,the mode is suitable for multi-geometry containers,It bispatches caps at fast speed without any cap reversed . Supplying cap system and mechanical hands work together in phase . When the cap is tightened , bottle and cap stand still relatively ,and the clutch separates immediately so that able and not apt to be damaged .
Main technical parameter
| Capacity | ≤4000b/h |
| applicable bottle diameter | 45-90mm |
| applicable bottle height | 180-320mm |
| cap diameter | 22-32mm |
| air pressure | 0.6-0.8Mpa |
| voltage | AC220V,50/60Hz |
| total power | 2.2Kw |
| net weight | 850kg |
| dimension | 2000(L)×1000(W)×2100(H)mm |

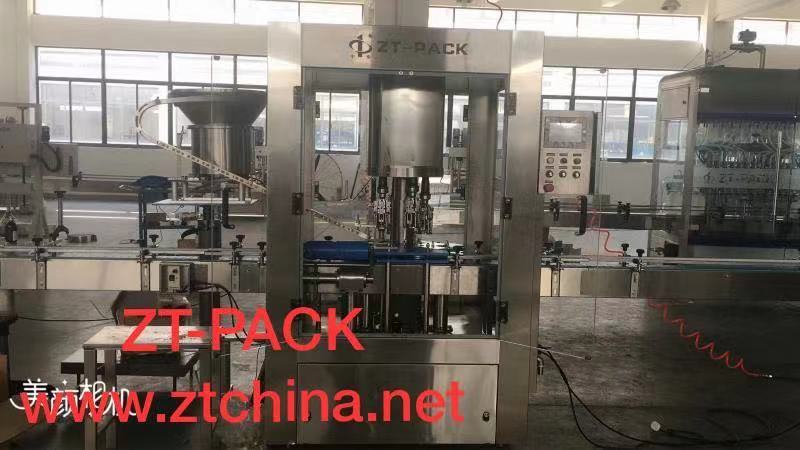

Detail photos

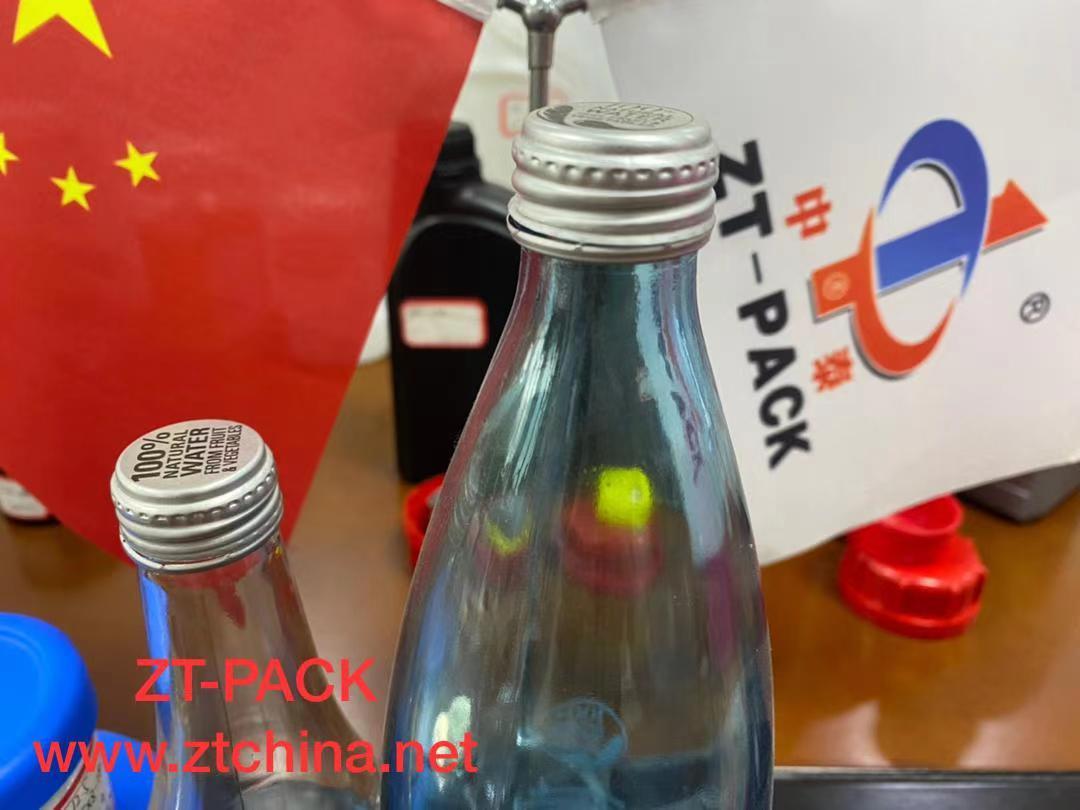

Suitable bottles
Key Features:
Carbon steel base mounted on adjustable floor levellers for easy alignment
Bearing frame and all surface components manufactured in 304 stainless steel
Magnetic clutch capping heads for screw caps complete with pick & place cap system
Caps in chute photocell, machine will not work if there are no caps present on chute
Automatic cap feeder, chute and applicating head
Electrical socket for optional elevator feed
Safety guarding with interlock devices
Cap change parts complete set to run a different size cap(option)
Cap elevator to load the cap feeder automatically(option)
