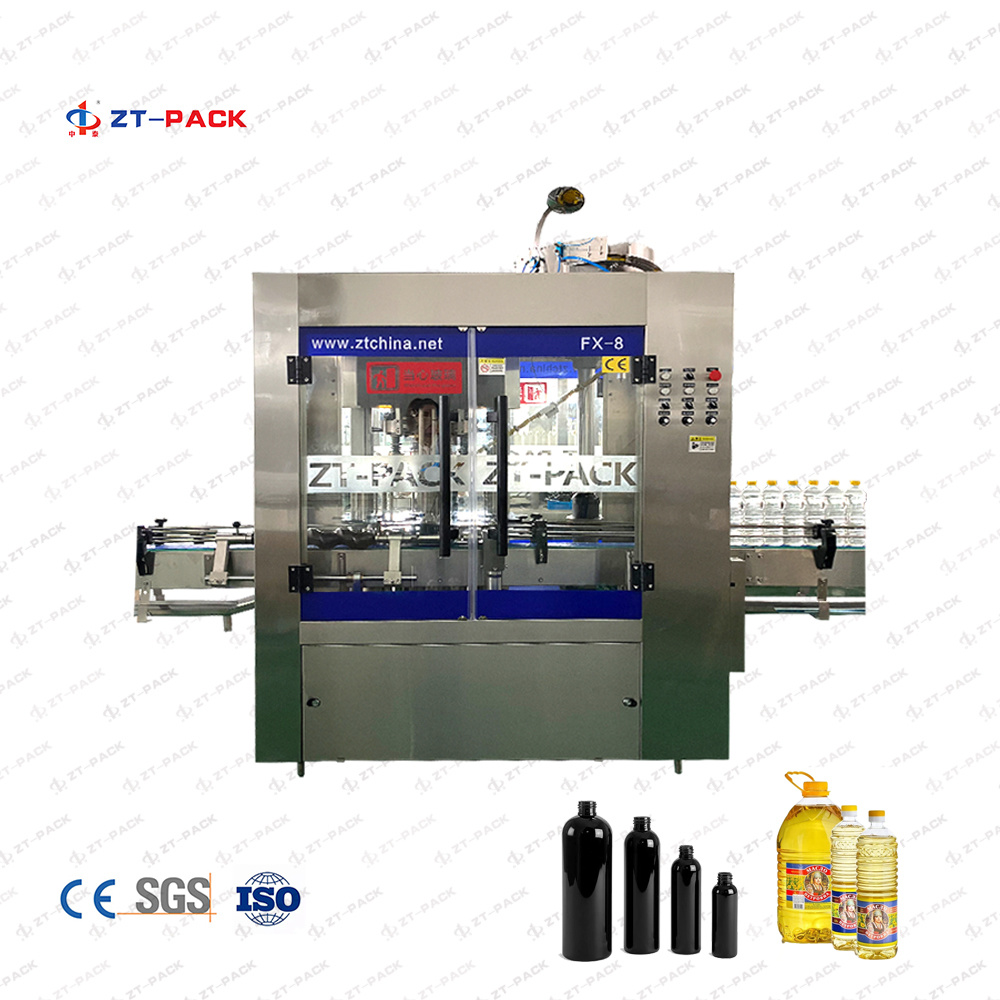

Full-automatic rotary capping machine - bottle neck take cap system
Product Description
Rotary Screw Type Capping Machine --Bottle neck take cap system
Type: FX-4/6/8
Fully Automatically Rotary Capping Machine
Bottle neck take cap system
4/6/8 nozzles can be choosen according to bottle diameter
speed : 1000-6000BPH
Machine Description ：
This machine combines bottle-in, cap-sorter, cap-elevator, capping and bottle-out altogether in one.
The rotary structure , catching the lid in the certain position, stable and reliable.
It does no harm to bottle and lid .
High capping efficiency, high qualified rate of capping, and wide application which enjoys good competitiveness that can be compared with foreign products.
It is applicable to varies size of glass and plastic bottles and caps. Its operation principle is by means of the scratching plate to cap the the lid when the bottle rotaryed.
The whole machine is controlled by the PLC, touch screen interface and convenient operation.
This machine has eight mechanical hands ,dispatches caps in high speed with no inverse cap ,which can be used in various configurations containers ,irregular containers .
It can be divided into scrape capping and grasp capping according to different caps . Supply cap machine and mechanical hands working with synch .
When cap tighten finished , bottle and cap relatively stop . Clutch separate , bottles and cap are not injured .
The each lid-revolving head has a clutch to ensure the tightened lid not to damage.
It suits for the all kinds of cylinder-shaped bottle’s lid-revolving for the industry such as foodstuff, pharmacy, daily chemicals, pesticide and chemical industry.
Main technical parameter
| 1. Capacity | ≤6000桶/小时(b/h) |
| 2. applicable bottle diameter | 40-150mm |
| 3. applicable bottle height | 80-280mm |
| 4. cap diameter | 15-50mm |
| 5. cap height | 15-35mm |
| 6. air pressure | 0.6-0.8Mpa |
| 7. voltage | AC220V,50/60Hz |
| 8. total power | 2Kw |
| 9. net weight | 900kg |
| 10.dimension | 2000(L)×1030(W)×2300(H)mm |

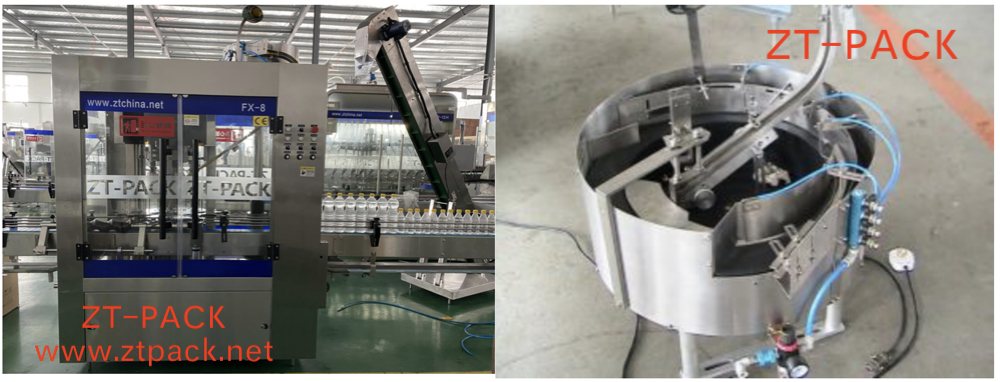

Detail photos
