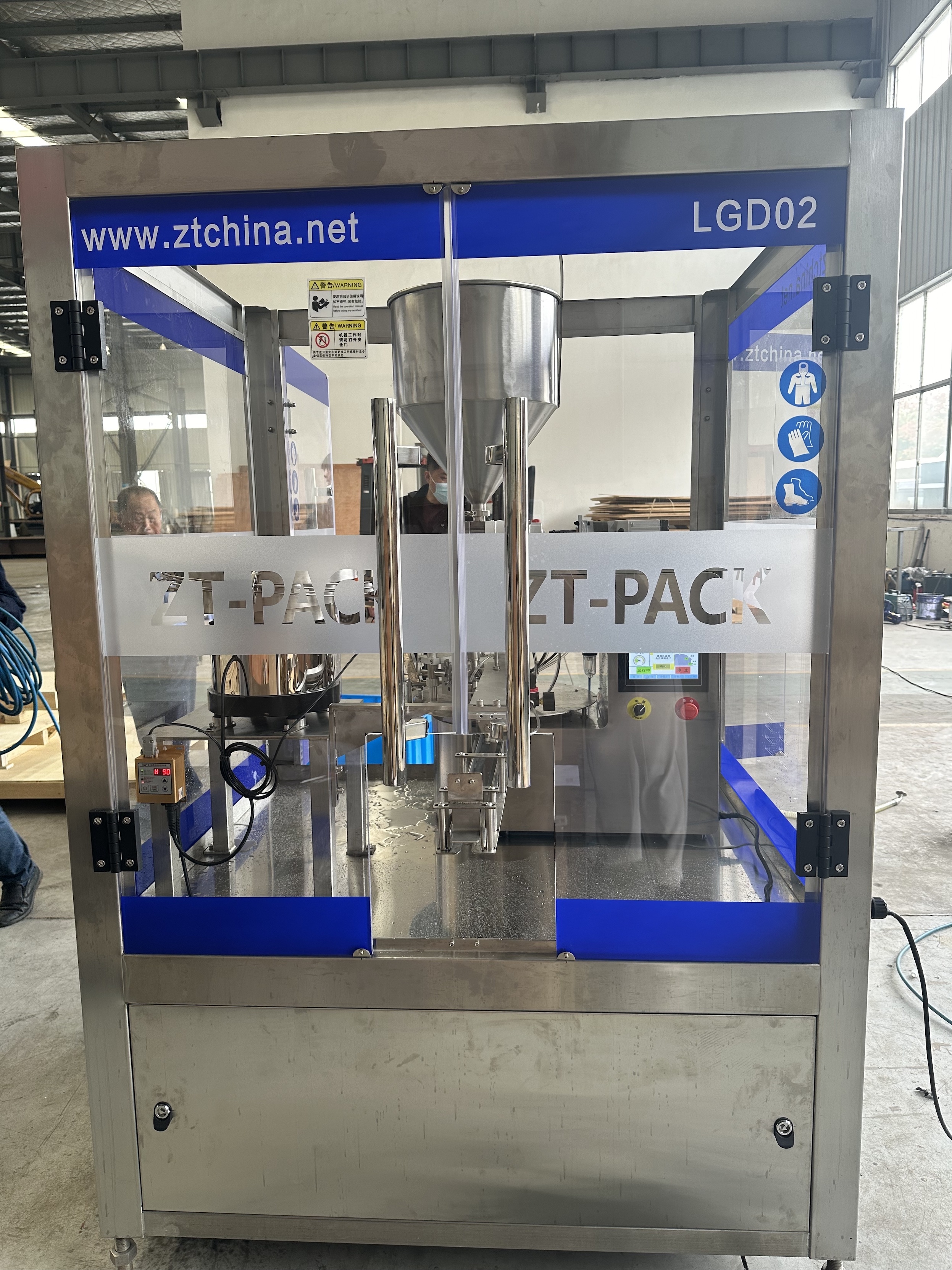

Turntable Bagged Filling And Capping Machine
Rotary filling capping machine nozzle bag small packaging machine With a compact body that saves working space, this filling and capping machine is designed to fill sauces, seasoning， laundry detergents, hand sanitizers, shampoos and other liquids into suction pouches while tightening the caps. The machine is suitable for small-scale production in the daily chemical and condiment industries.
Product Description
Brief Introduce :
Tabletop rotary filling capping machine nozzle bag small packaging machine
The use of function and structure description:
1. Into the bag: artificial hanging bag
2. Filling method: servo magnetic gear pump quantitative filling, self-priming canned
3. Lower cover mode: automatic cover hanging, manual cover or vibration plate automatic cover.
4. Capping mode: servo claw type capping, torque accurate adjustable.
5. Out of the bag mode: rotating automatic out of the bag.
Equipment parameters:
1. Length width and height: length 0.8mx0.9mx0.7m; Weight: about 65KG
2. Power supply: 220V/50HZ; 2KW;
3. The use of compressed air pressure: 0.5-0.8Mpa; Air consumption: 0.5m³/min;
4. Noise ≤85dB;
The working mode of the equipment: 1 person hanging bag - automatic filling - artificial capping - automatic capping; (1 personOperations)
5. Applicable capacity: 50 ~ 3000g
6. Equipment speed: 15 ~ 35 bags/min (according to the amount of cans)
For example: 2000g about 15-18 bags, 1000g about 20-25 bags, 450g about 30 bags.
The equipment filling accuracy: plus or minus 0.5% cases 100 plus or minus 0.5
Equipment features are as follows:
1. Applicability: suitable for daily chemical, food industry bag products: such as: laundry detergent, shampoo, jelly, milk, etc.;
2. Simple operation: data adjustment machine, the same tooth pocket after saving parameters only need to adjust the product capacity;
3. High efficiency: fast filling speed, good stability, each filling capacity using servo motor control, high filling accuracy;
4. Easy to clean: gear pump, storage tank and filling head are connected and fixed by hoop, no need to use tools can be partially disassembled and cleaned; There is an automatic cleaning button on the main control screen
How to choose automatic piston filling machine is big challenge for customers, If your are unsure how to choose a piston filling machine,Please let me know
What product to fill
What output capacity to achieve
What material and shape of containers
What size of containers to fill
Our professional team will help you to choose
So please contact us for specific advice on the best solution for you now.
