50ml -1000ml Pesticide Fertilizer Servo Piston Filling Machine

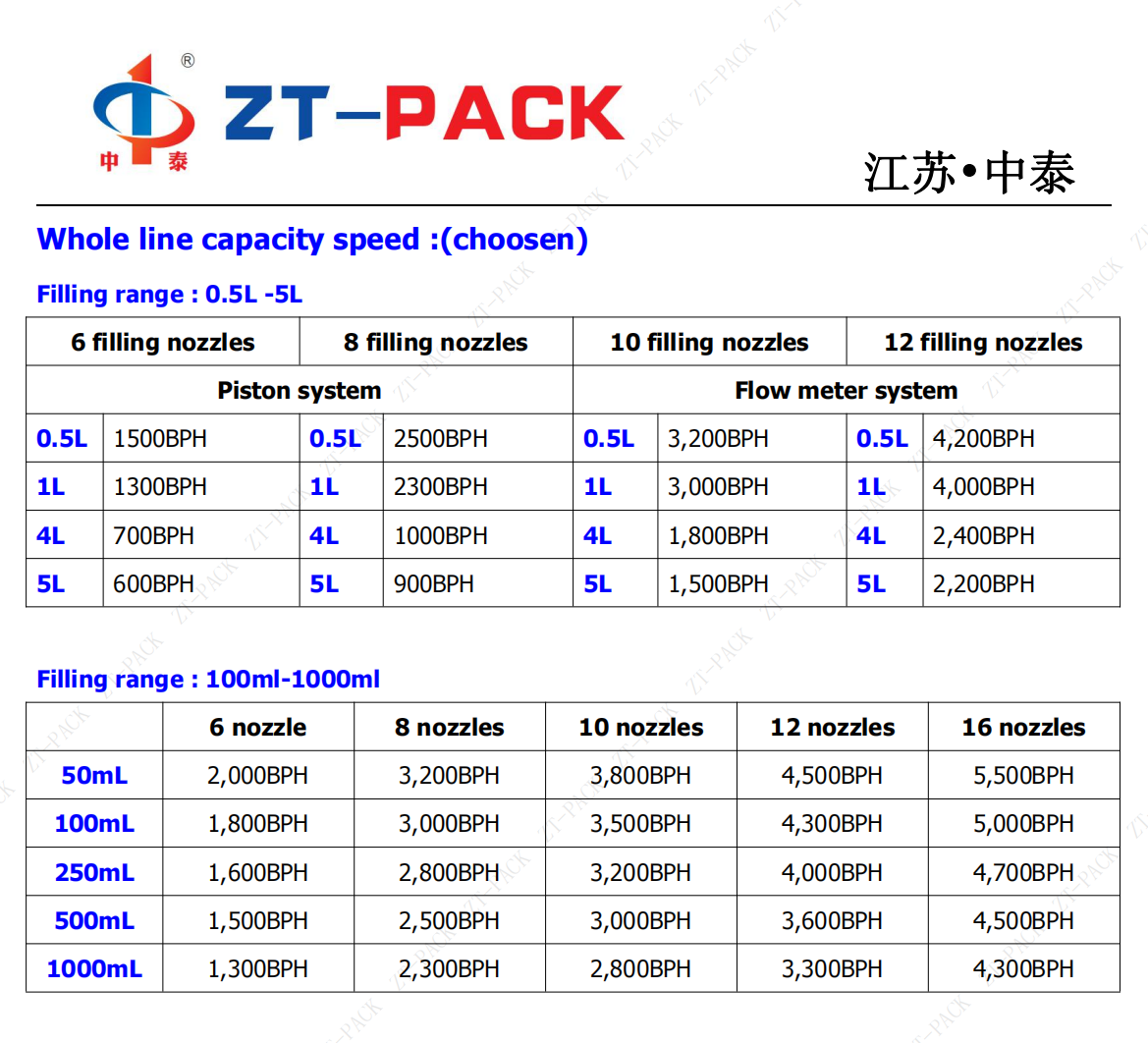

50ml -1000ml Pesticide Fertilizer Servo Piston Filling Machine Suitable for : Pesticide / Fertilizer / Chemicals / Agrochemical Products Filling Range : 50ml -1000ml / 1L-5L Capacity Speed : 1000-6000BPH can be choosen No Leaking , No Bottle No Filling Less worker Meet GMP Standard
Product Description

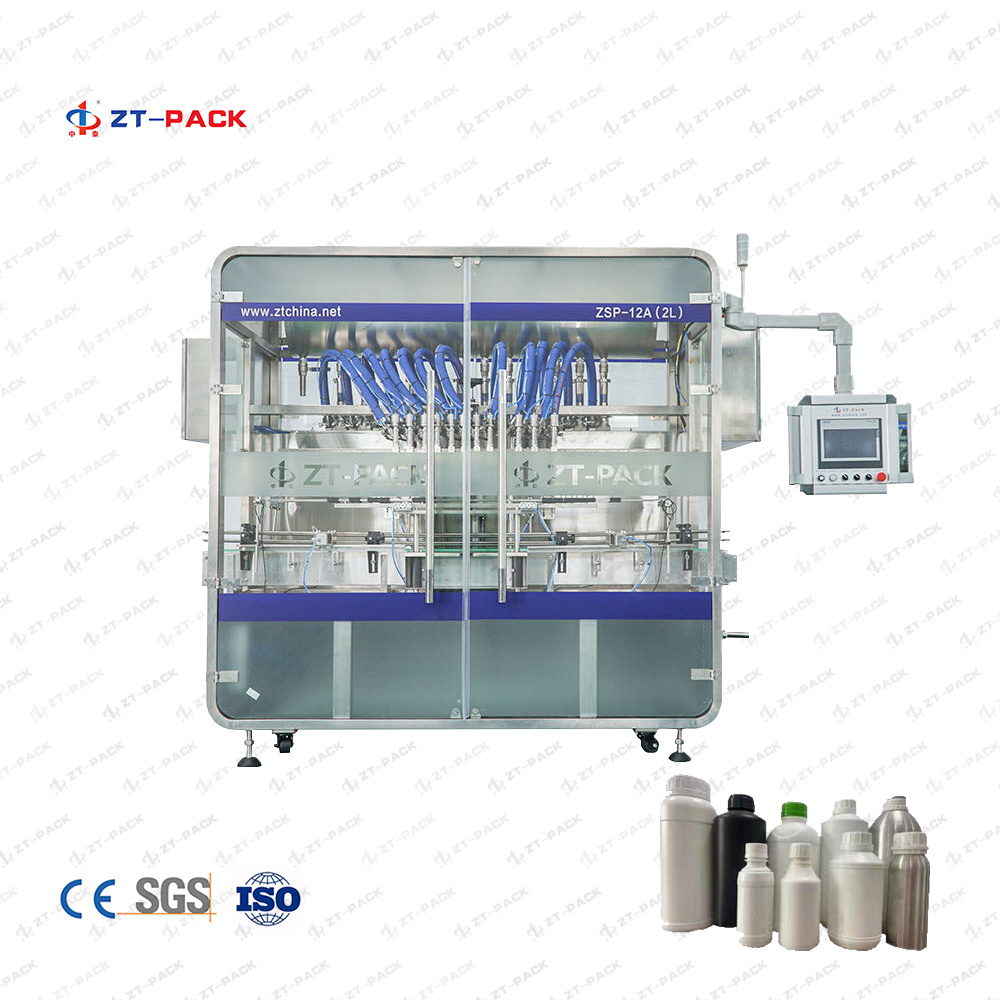

Machine Name : 50ml -1000ml Pesticide Fertilizer Servo Piston Filling Machine
This line is suitable for Agrochemical , chemicals Packing
Automatic packaging of chemicals liquids.
Suitable For Filling : Pesticide , fertilizer ,suspending agents, liquids, emulsifiable concentrates and water-soluble fertilizers, Acaricide,Fungicide,herbicide, EC ,SC , SL etc.);
Filling range : 50ml -1000ml (50ml ; 100ml ; 250ml ; 500ml ; 1000ml)

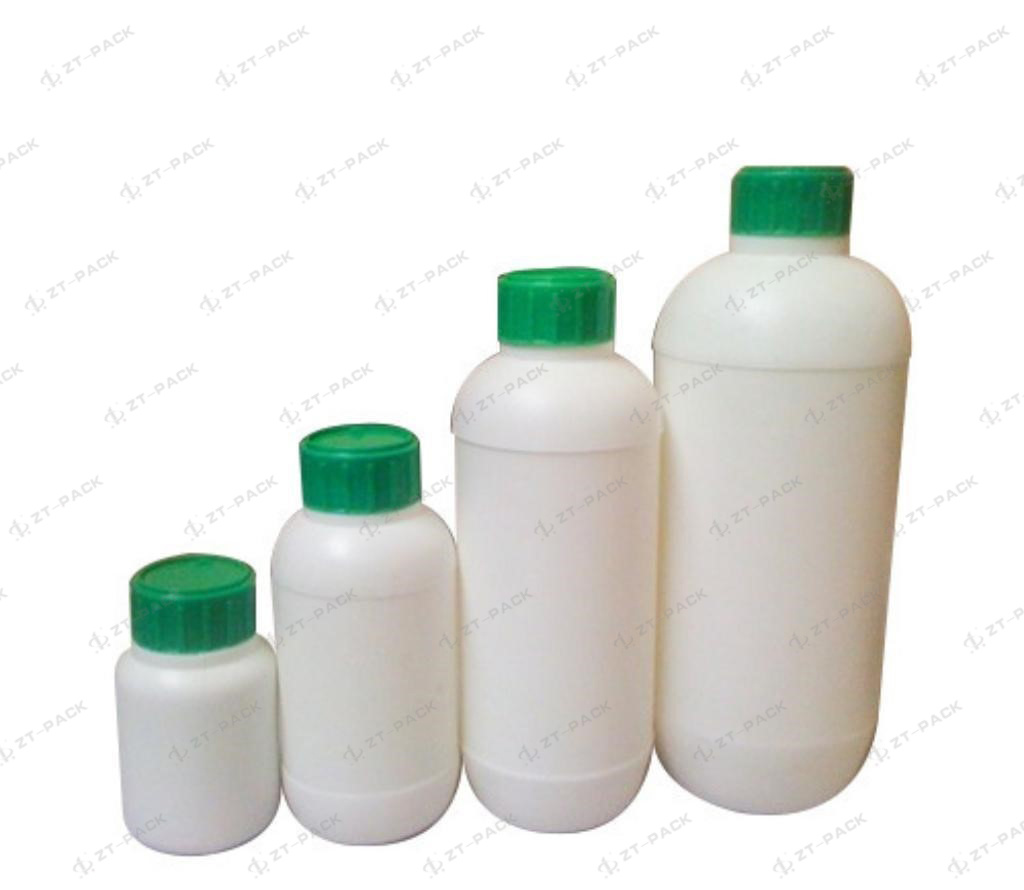

Bottle Shape : Round & Flat Bottles
This machine is a Servo Piston Type filling machine with high filling accuracy. It applies 50ml-1000ml liquid for filling.
It is widely use for agrochemical SC，pesticide , SC Filling Packing
It is produced with the GMP standards, safety, environmental hygienism, beautiful and adapt to different kinds of work place.
Details For Filling Machine :
Suitable for Filling :
Key Features :
Heavy-duty stainless steel constructed
Stainless steel Reservoir
Automatic Bottling Index kit with bottle counter
Pneumatic indexing gates (count in, count out)
Automatic product level sensing float system
Easily adjustable nozzle height settings accommodate vials to gallons
User friendly PLC controls with touch screen HMI
No bottle/No fill sensor
Bottle backup sensor (downstream) delays operation until jam is cleared
Able to output multiple doses per container for large containers
Easy clean stainless steel quick connect fittings
Drip Tray
Diving heads nozzles for bottom up filling to reduce foam
Neck grabbers for containers with small opening
Specifications are subject to change without notice, All rights are reserved.
How to choose automatic piston filling machine is big challenge for customers, If your are unsure how to choose a piston filling machine,Please let me know
What product to fill
What output capacity to achieve
What material and shape of containers
What size of containers to fill
Our professional team will help you to choose
So please contact us for specific advice on the best solution for you now.
