Full-automatic Linear lid-pressing machine <half frame >
Product Description
Linear pressing type capping machine
Type: FXZ-160B
The machine use the straight line into the bottle, automatically arrange caps, sleeving caps ,caps after sleeve and check will go into the gland system by the clamping belt。Due to the lid-cover flat belt design have a drop of slop, the caps after press will become more and more tightly.The machine has simple structure, convenient adjustment, production speed fast, high pass rate, after cap pressing has good performance, suitable for cap pressing of foodstuff, soy sauce, vinegar, vegetable oil's bottle shape.
Main technical parameter
| 1. Capacity | ≤6000(b/h) |
| 2. applicable bottle diameter | 50-110mm |
| 3. applicable bottle height | 150-300mm |
| 4. cap diameter | 45-160mm |
| 5. air pressure | 0.6-0.8Mpa |
| 6. voltage | AC220V,50/60Hz |
| 7. total power | 1.1Kw |
| 8. net weight | 650kg |
| 9. dimension | 2000(L)×930(W)×2100(H)mm |

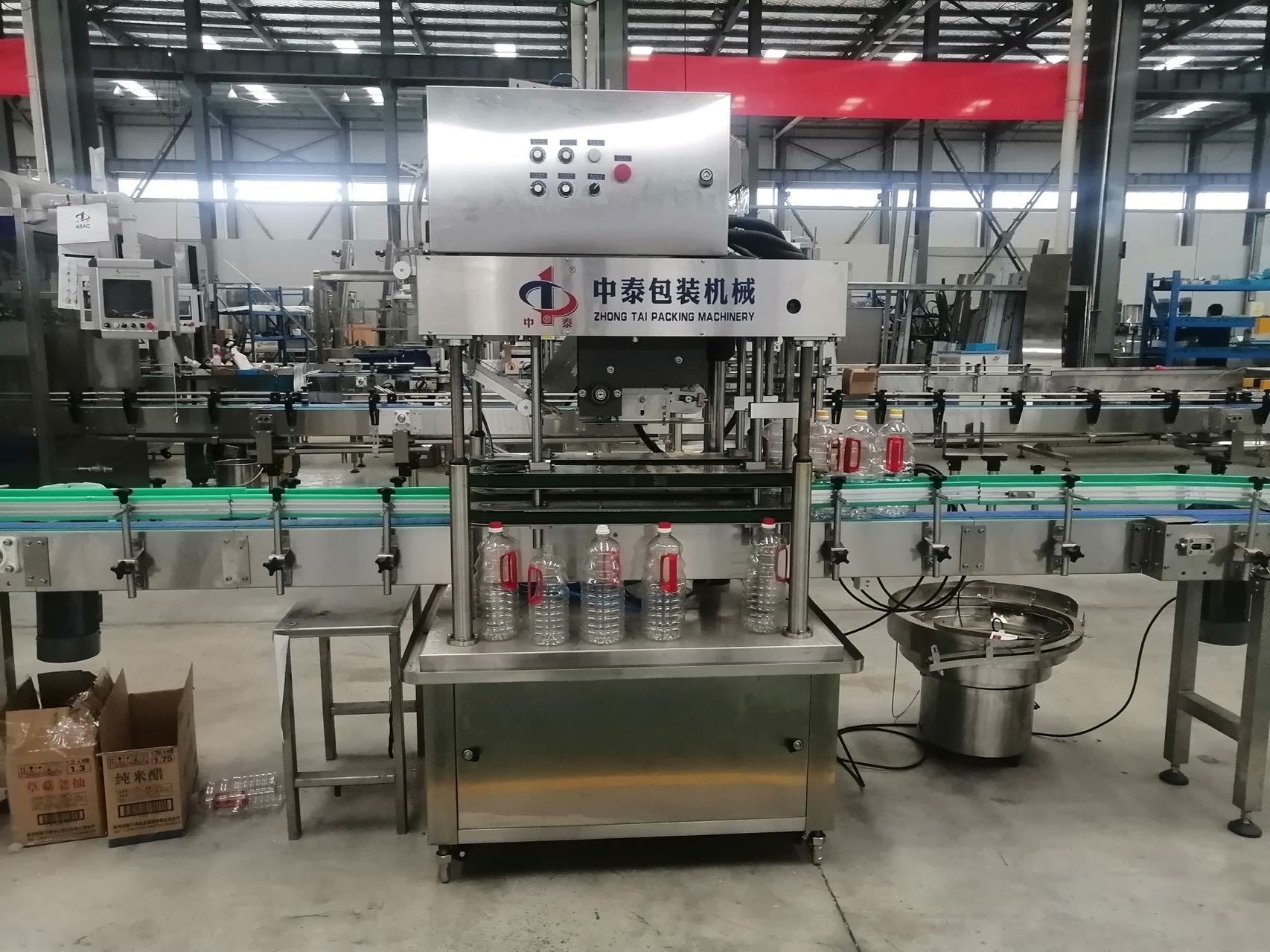

Detail photos
