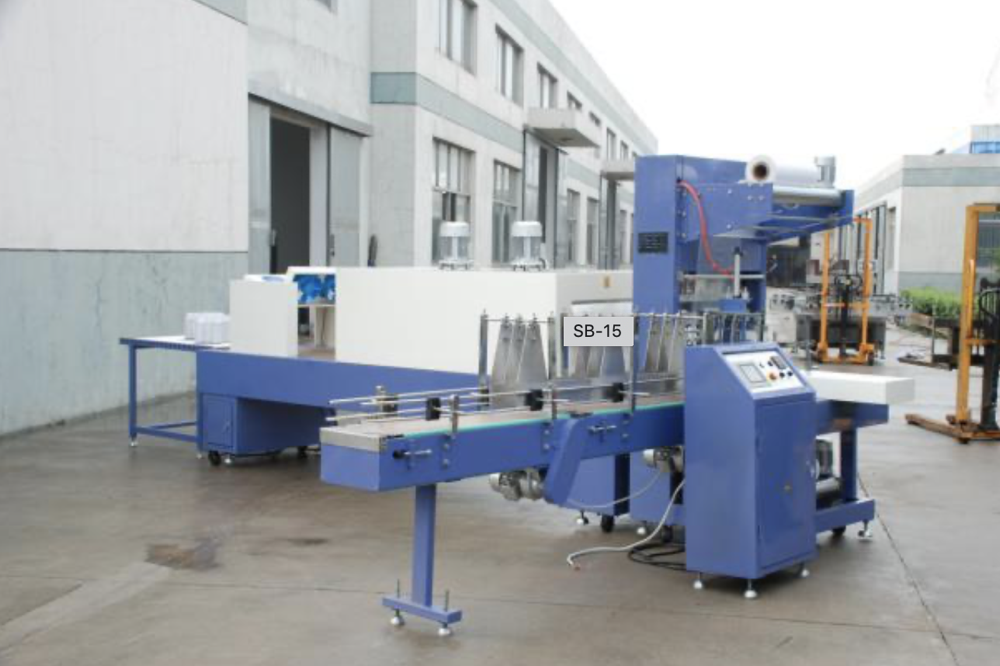

SB-15B Full-automatic shrink packing machine without tray (servo separating route )
Product Description
SB-15B Full-automatic shrink packing machine without tray
The machine is automatic mantle heat-shrink packing machine is widely used in square、round、flat shape bottle plastic film shrink packing for beverage, food , medicine, chemical industry, without bottom bracket, without carton boxes, packing perfectly, low cost, do not take place, easy to transport.
Main technical parameter
| Capacity | 6-15b/min |
| packing dimension | 600×400×350mm |
| size of shrink tunnel | 3700×920×1800mm |
| heigh of cornneyor | 920mm |
| air pressure | 0.6-0.8Mpa |
| total power | 20Kw |
| voltage | 3phase-5wire AC380V,50/60Hz |
| net weight | 1500kg |
| dimension | 5050(L)×3300(W)×2100(H)mm |
