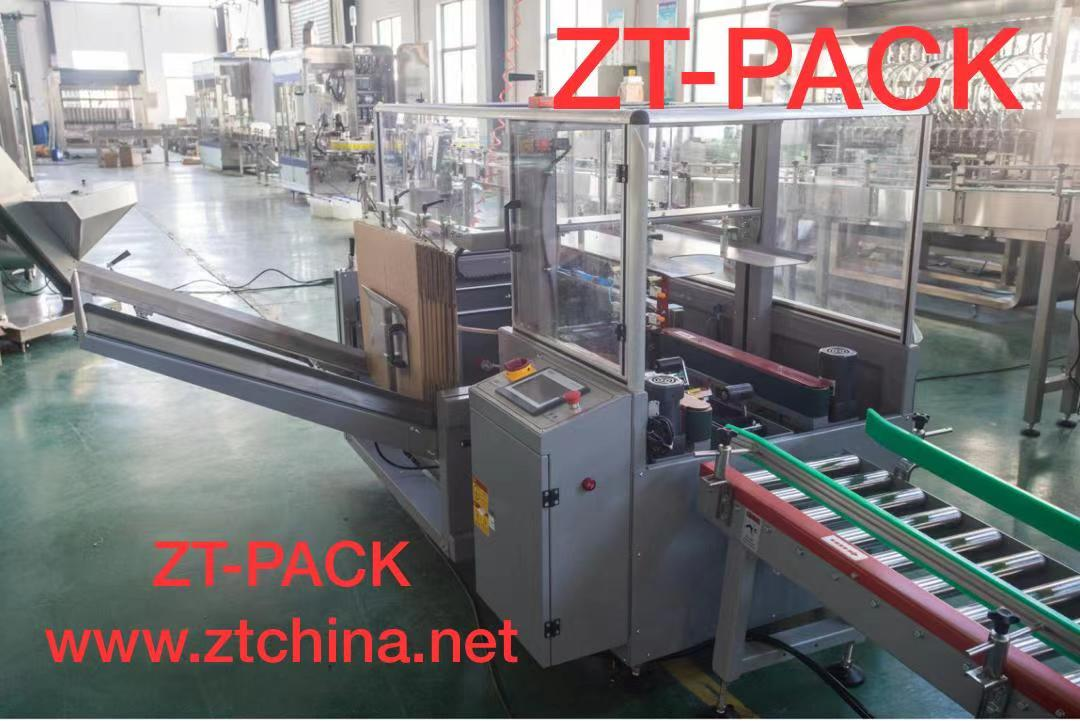

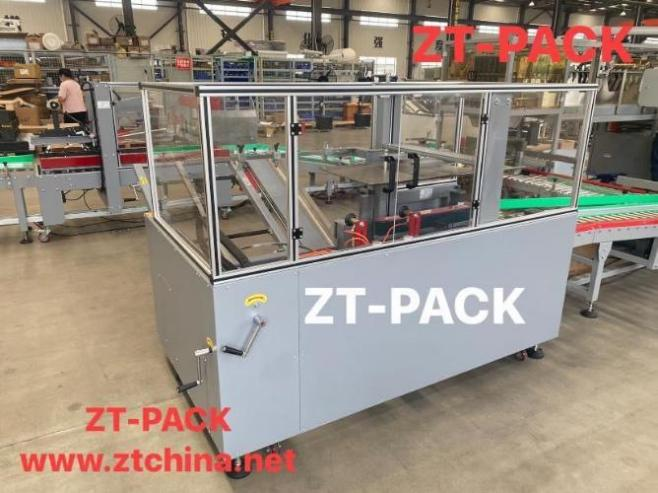

Automatic Case Erector
Product Description
Name : Automatic Case Erector
ZT- Carton Erector The main features are automatic binning, automatic vertical box molding, automatic folding cover, automatic sealing function。
main parameter：
1、 voltage：380V/50HZ;
2、 Carton erector speed：5-10 cases per minute;
3、 Max carton specification：L410*W275*H230(mm);
4、 Sealing tape Size：weight 48~60mm;
5、 Gas source：4.6kg~6.5kg，intake pipeφ10;
6、 Storage carton tank can put at least 50pcs without forming the carton once,can be added any time .
7、 The electric system: "Siemens" PLC controller, the text mode of operation, "Schneider" contactor, FESTO and AIRTAC pneumatic components and Chenbang notor
8、 No tape and no carton alarm function;
9、 Carton erector type：Vertical shape, exit height 600mm,opening towards the top after carton forming out
10、 Machine oversize：L2000*W1995*H1460mm;
11、 cloour：White color card;
12、 Carton erector is right into left out.
