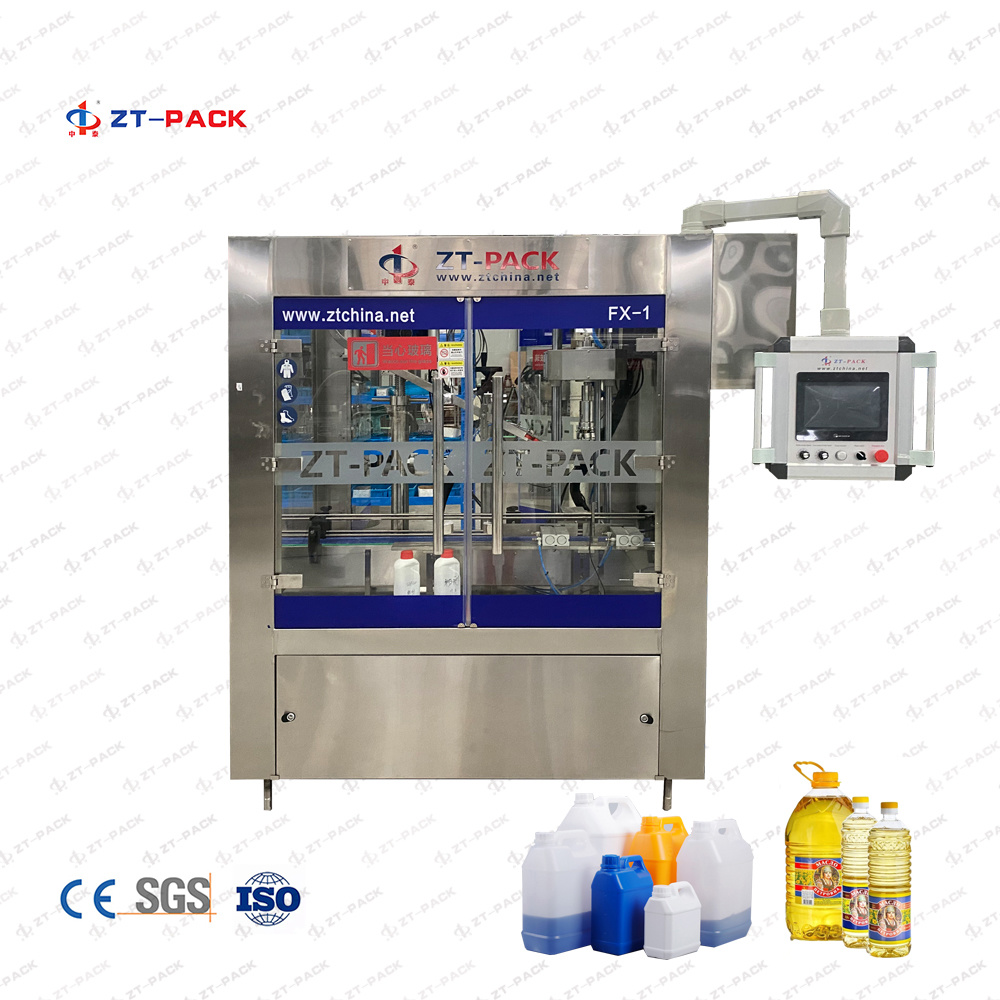

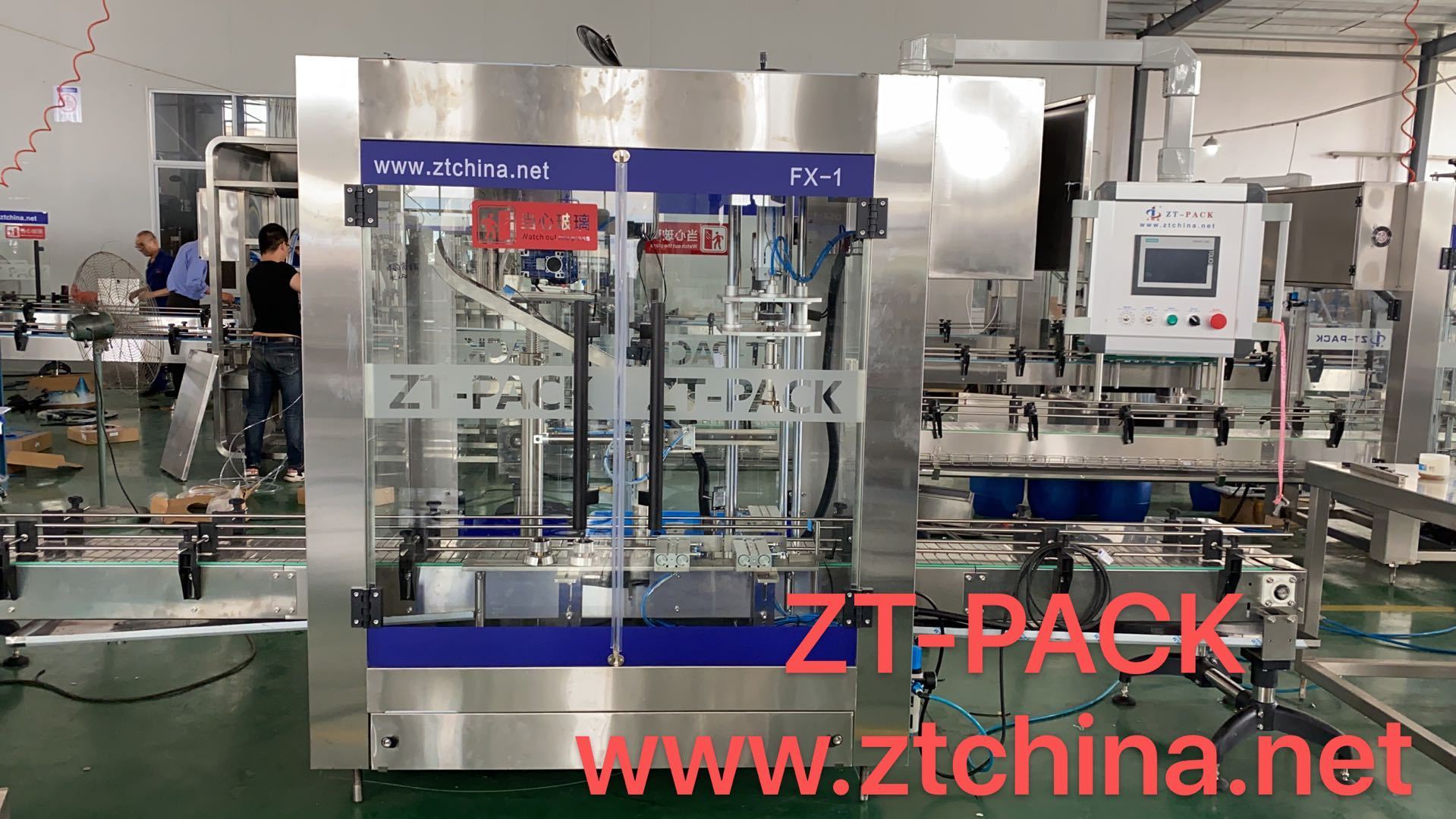

FX-1A Full-automatic Linear single-head capping machine
Product Description
Full-automatic Linear single-head capping machine
Type : FX-1A
This machine is protective automatic capping machine and control by PLC program .
Bottles will be fixed by two cylinders and it can automatically arrange lid , taking lid and sending lid,it will first grasp lid then capping under control of double-acting cylinder lifting stroke.
The machine grasp lids through pneumatic type, lid-revolving head has a clutch to ensure the tightened lid not to damage.
It suits for capping of 500ml -5000ml plastic caps
speed : less than 800BPH
Pick and place type
Main technical parameter
| 1. Capacity | ≤1000(b/h) |
| 2.applicable bottle diameter | ≤210(L)×130(W)mm |
| 3.applicable bottle height | ≤320mm |
| 4.cap diameter | ≤70mm |
| 5.air pressure | 0.6-0.8Mpa |
| 6.voltage | AC380V,50/60Hz |
| 7.total power | 2Kw |
| 8.net weight | 550kg |
| 9.dimension | 2000(L)×1030(W)×2100(H)mm |

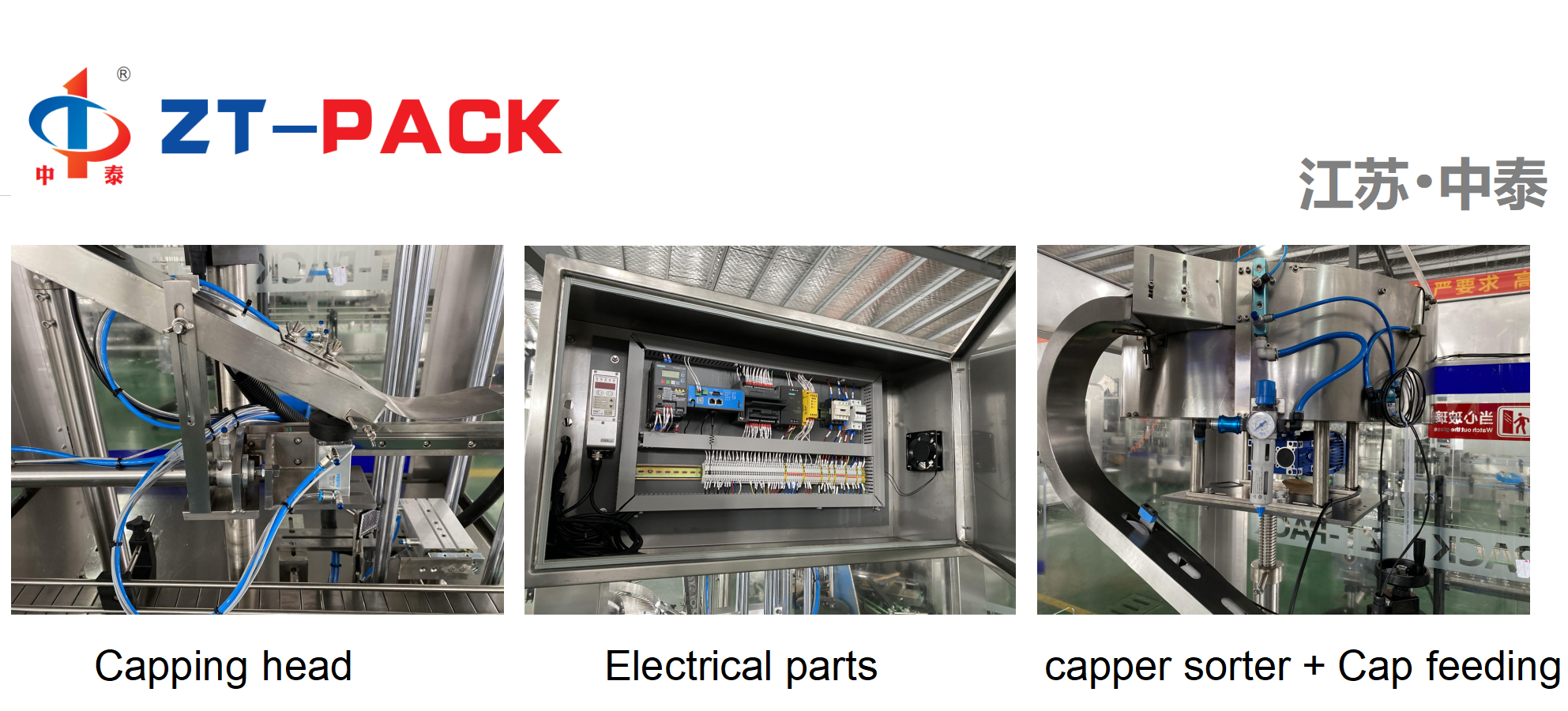

Detail photos
