Tablet Chew Gum Counting Filling Machine
Tablet counting filling machine for pills chew gum filling bottle granulate counting filler
Product Description

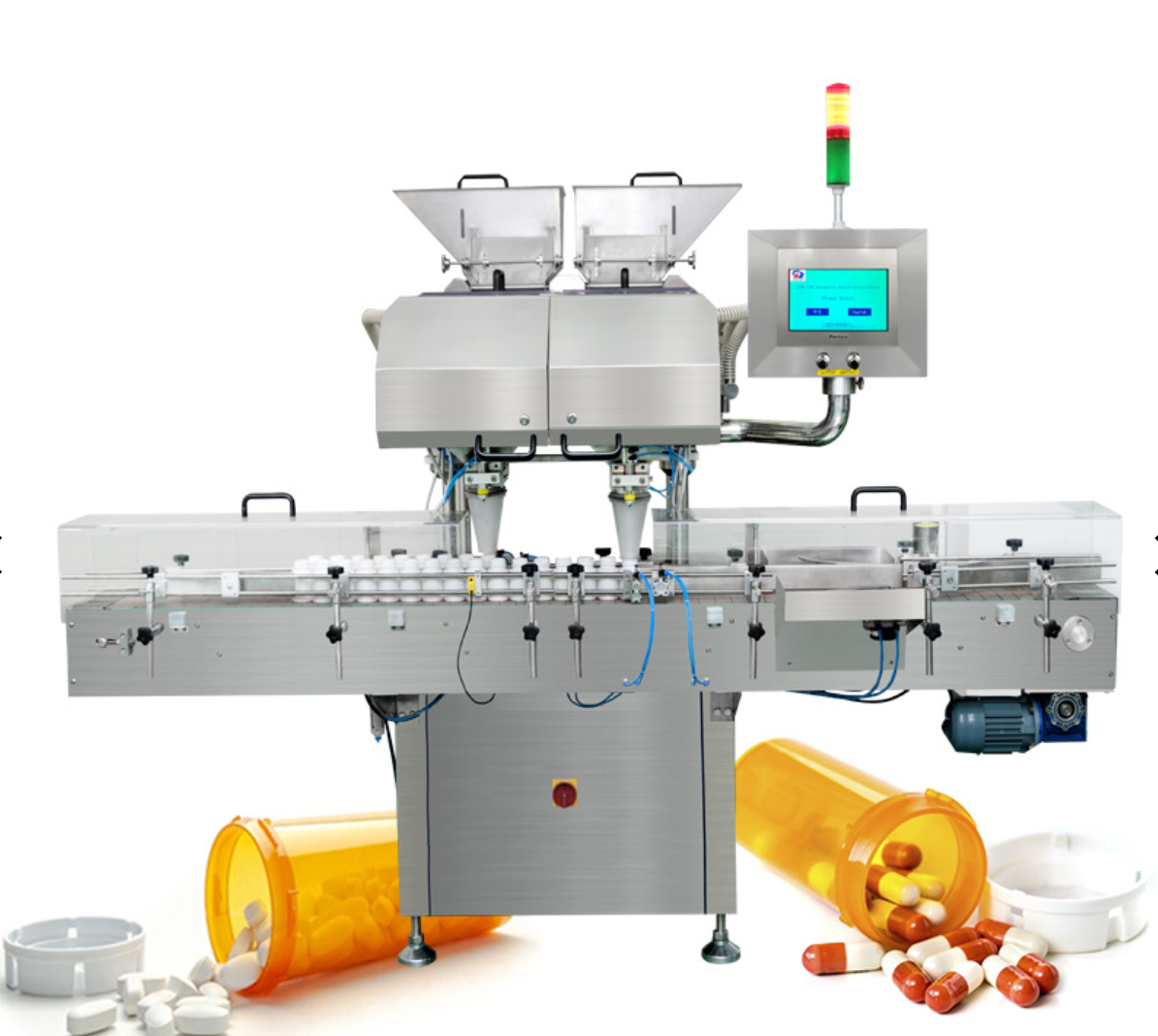

Product Name : Tablet Counting Filling Machine
Type : ZT-16
Suitable for filling : Tablet / Chew Gum / Pills ...
Speed : 40-60BPM

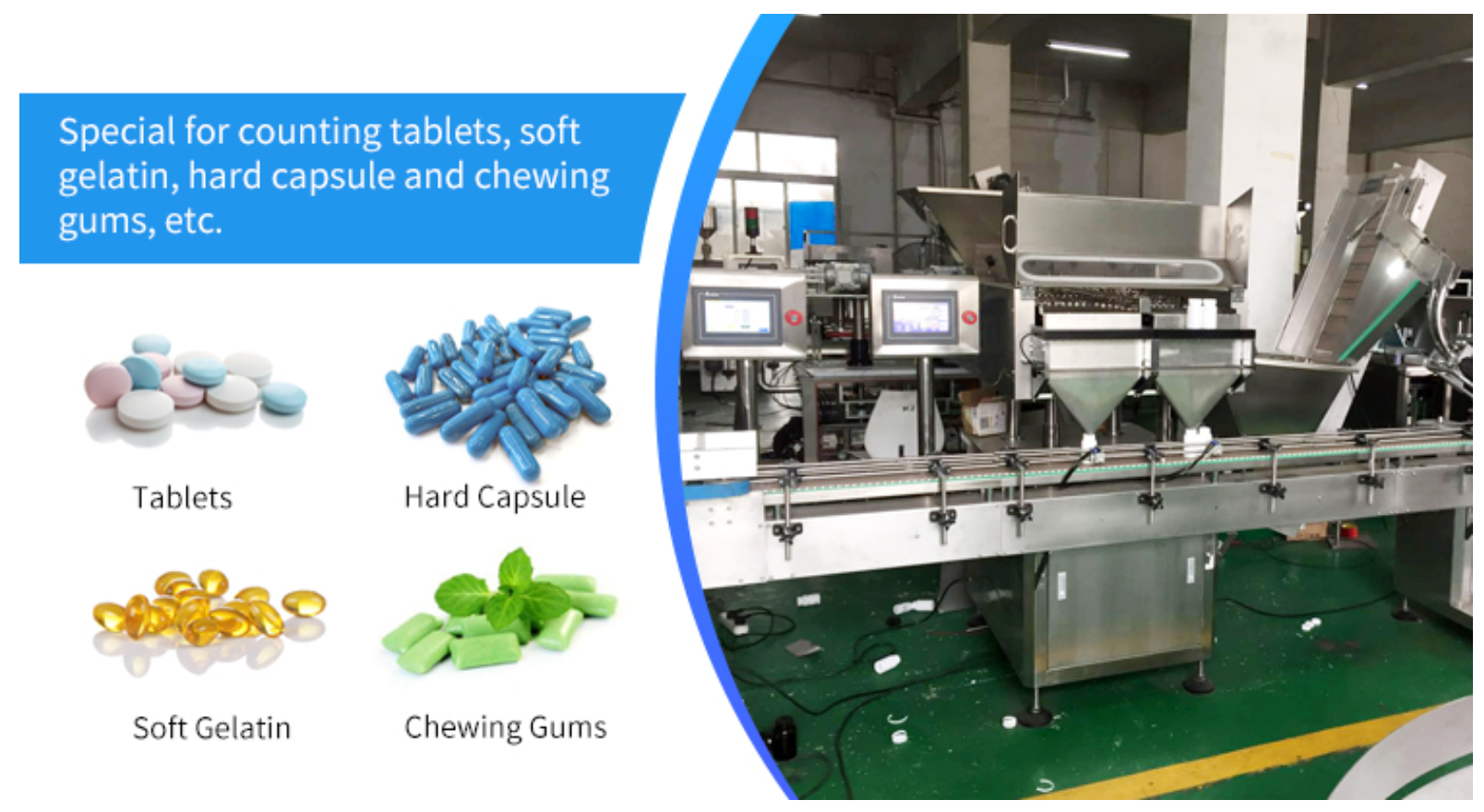

Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc.The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table heightby Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.
Main features
1. Strong compatibility: It can count and bottle various kinds of solid preparation or solid granules such as tablet (including special shape tablet), capsule, softgel (transparent and non-transparent), pill , etc.
2. Filling by vibration: By the vibration, the material is moving evenly in the channels, and with the patent-owned turning plate structure, the separation and filling process is even and steady , protecting well the material.
3. Effective anti-dust : Adopting the anti-dust photoelectric sensing technology
developed by ourselves, the machine also can work stably under the high dust circumstance.
4. Precise counting : Counting with automatic photoelectric sensor , the error of bottling is less than national standard.
5. Special structure of the discharge spout can prevent drug blocking. Even small spout bottle can be filled fast (optional)
6. High intelligence : It has various intelligent alarm functions such as no counting without bottle, automatic fault checking and so on.
7. Easy operation : Adopting intellectualized design, all kinds of operation parameters can be
set according to the requirement . It can store 10 groups of set parameters for use.
8. Convenient maintenance :After simple training, the worker can operate easily. It is easy to disassemble and clean the machine, and change the components without any tools.
9. Hermetic and dust proof :Dust collection box is available which can reduce the dust pollution. (Optional)
Main performance patameter:
|
Production capacity |
20~120 bottles/min |
|
accuracy rate |
>99.8% |
|
Applicable target |
#000-5 capsule, soft capsule, 3-25mm tablet,shaped,sugarcoated tablet and pills |
|
Filling range |
1-9999 grains (tablets) adjustable |
|
Applicable bottle type |
10-500ml round, square bottle |
|
voltage |
380/220V 50Hz or Customized |
|
power |
1.2KW |
|
pressure |
0.6Mpa |
|
gas consumption |
36~45L/min |
|
weight |
550kg |
|
Outline dim.(mm) |
1400×1650×1650mm |

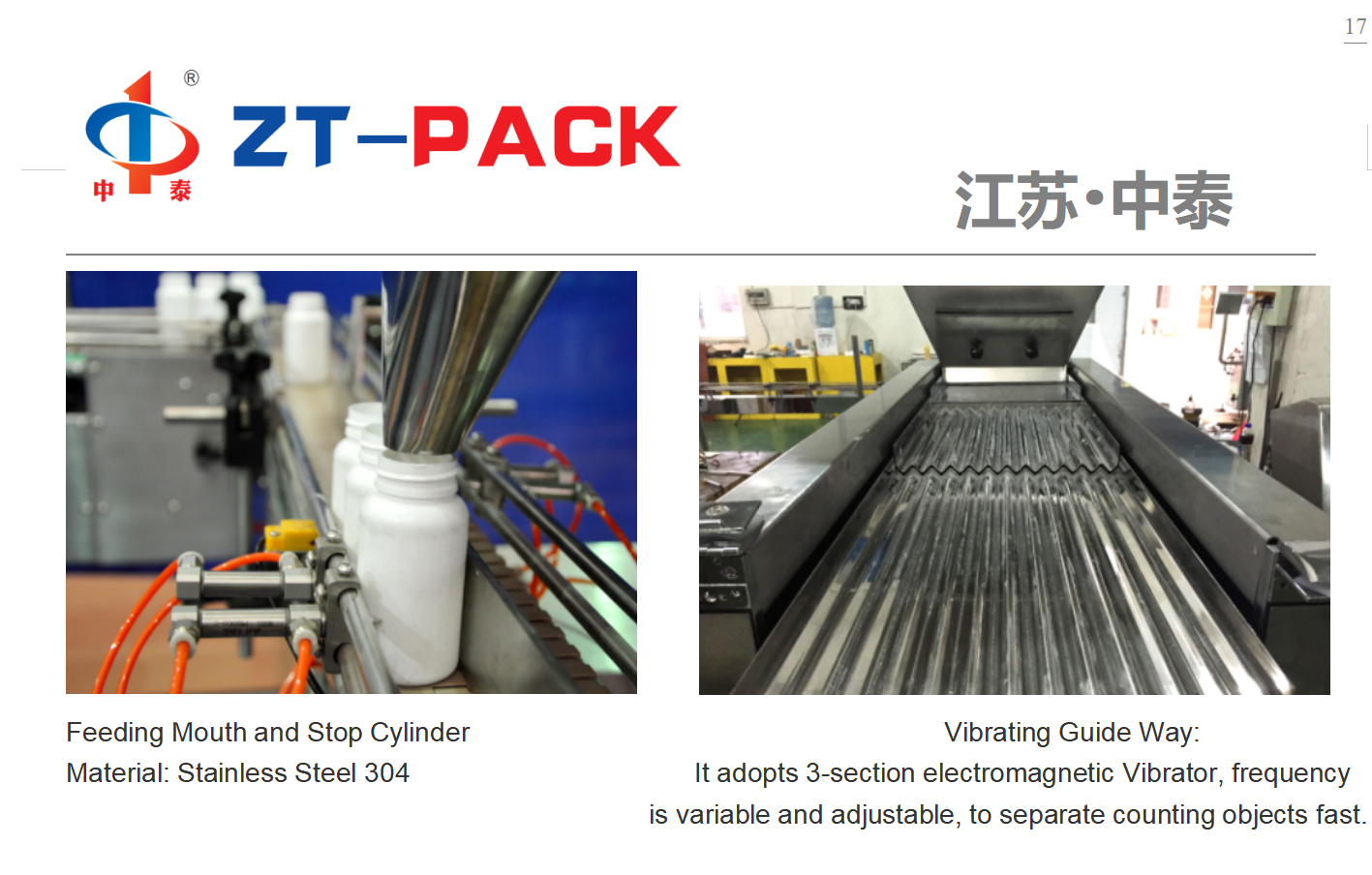

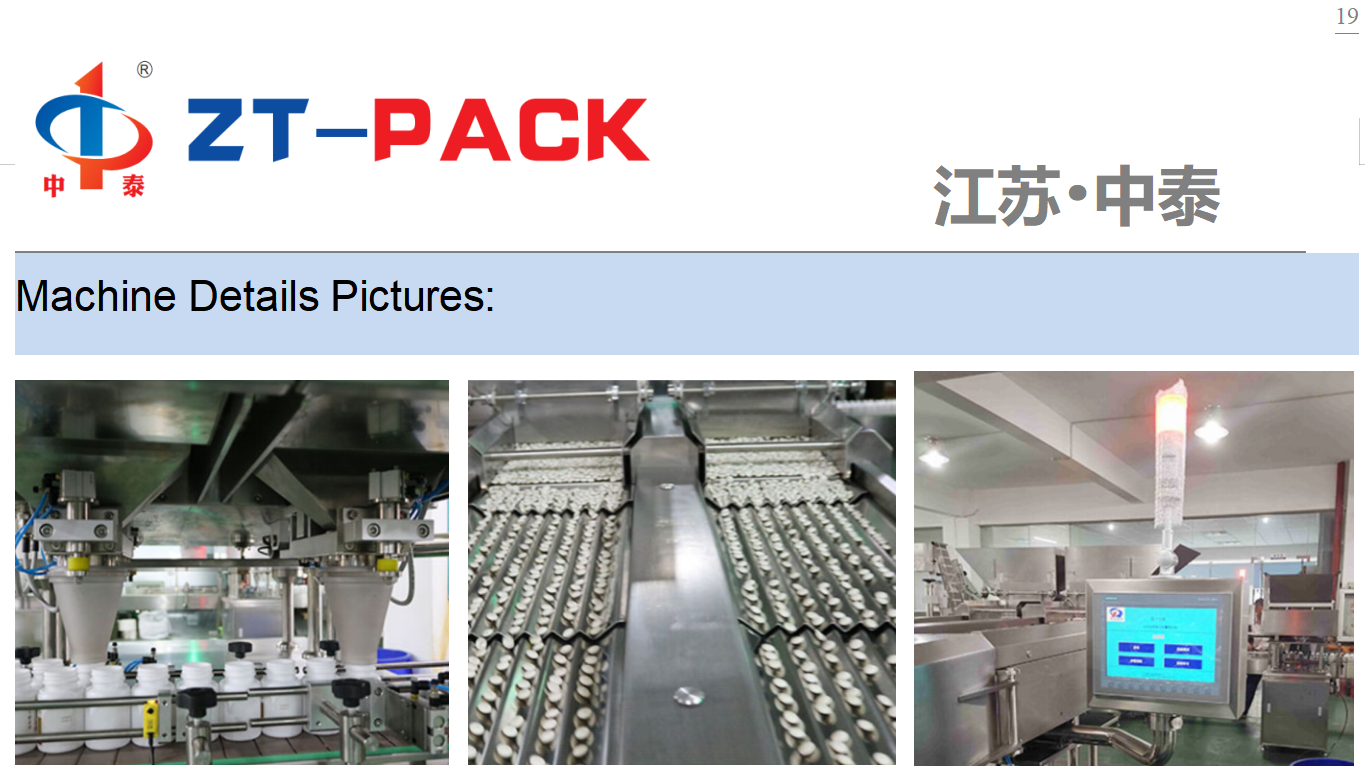

Machine Details Picture :
Layout Drawing :
Certificate :

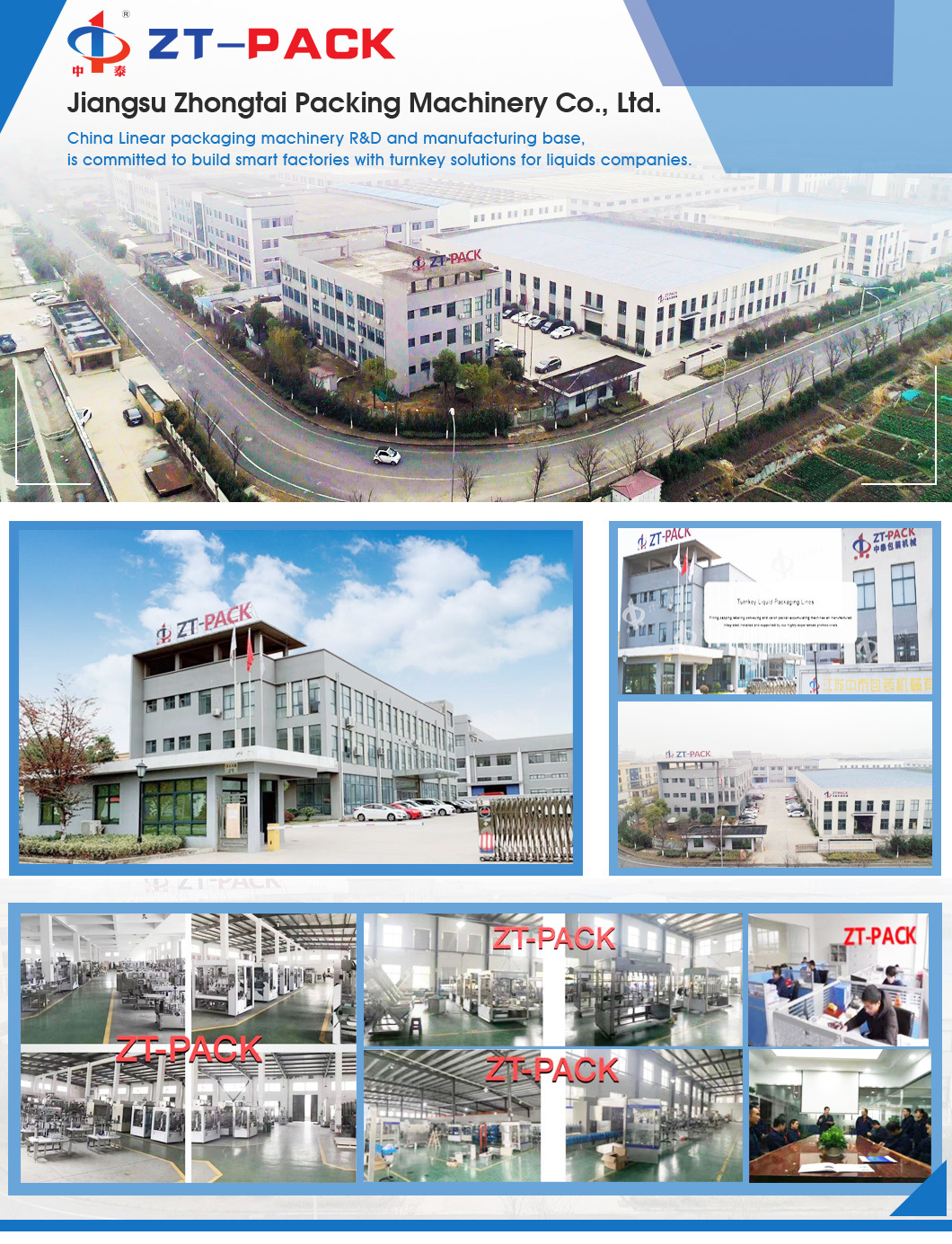

Workshop :
