Servo Palletilizer
Palletier by servo motor control for finished product and cartons
Product Description
Mechanical Palletizer
It is used in the industries of beer food and beverage, the chemical, etc., to stack various types of bottles and bags.
With easy adjustment and large production capacity, it is suitable for a variety of fascia boards and boxes.
The change of production line only needs to modify the software program.
Press one button to change the type of stacking and it is easy to change products.
It is suitable for palletizing the packages of carbon and heat shrink film.
Major characteristics：

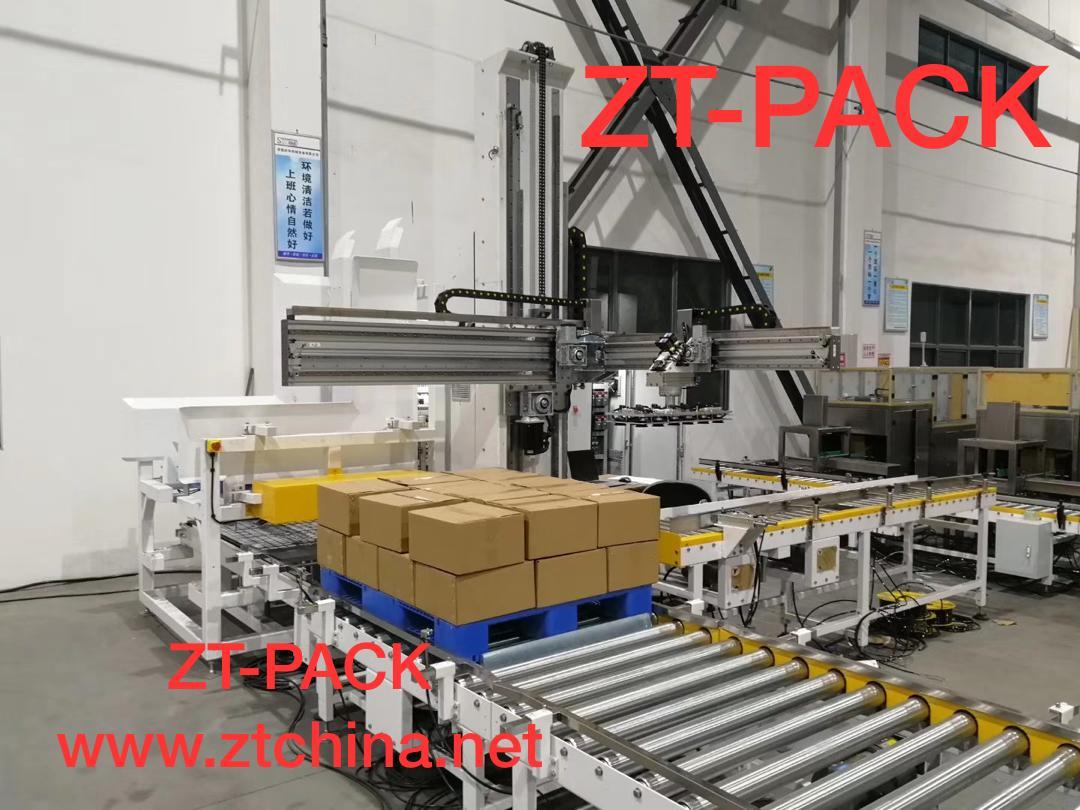

Structural Features: The servo palletizer is mainly composed of feed conveyor, slow stop conveyor, positioning conveyor and four-axis servo palletizing device. Its structural design optimization, smooth and reliable action. Palletizing process completely automatic, normal operation without human intervention, with a wide range of applications.
This machine greatly reduces the labor intensity and quantity. Adopting the design concepts of high speed, stable performance, and less space occupation. The pallet coming off is separate, saving a lot of time and is faster. One machine serves several purposes, adjustment is fast so there is no need to worry about when change the palletized products.
Application range: corrugated carton, plastic bucket, bucket-like package, bag-like package
The application of touch-screen operation achieves man-machine dialogue, displaying the production speed, cause and location of failure, high degree of automation. The configuration and layers of the carton, pallet feeding and discharging can all be programmed by PLC.
Main performance parameter :
|
Model |
MD-02 Servo Palletizer |
|
Power Supply |
380V 50/60HZ 3.8KW |
|
Applicable Pallet |
L1200*W1200mm |
|
Palletizing Speed |
3-4times/min |
|
Palletizing Height |
Lower than 2000mm |
|
Dimension |
3200*2500*4000mm (L*W*H) |
