Magnet pump filling machine for household chemical / agrochemical / sauce / oil / etc. products liquid in bottles
This is weighting type filling machine , widely use for oils / chemicals fill packing Filling System : Net weight Load Cell High Accuracy : 0.1% Suitable for : Lubricant Oil / Car Oil / Motor Oil / Coolant liquid / Engine Oil /Brake Oil ...Etc kinds Products Edible Cooking Oil Agrochemical / Fertilizer / Pesticide / chemical ... Capacity Speed : 6-10 Nozzles can be choosen
Product Description

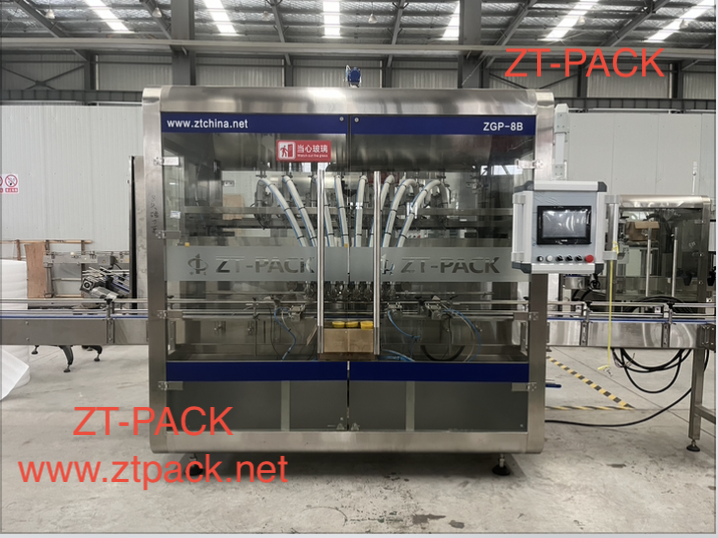

This is our newly developed filling machine . It has reached the international advanced level ,partial has exceeded the similar product . It is abroad , also certified by the world famous chemical magnate . This is a inline piston filling machine for cream and liquid ..It adopts PLC and touch screen control panel for control material . It is characterized by accurate measuring ,advanced structure ,stable operating ,low noise ,large adjusting range ,fast filling speed . It is also suitable for the filling of easy volatilization ,easy bubbly liquid strong corrosive liquid for rubber ,plastic,and high viscosity ,liquid ,semi-liquid . Operators adjust and meter figure in the touch screen control panel , also can adjust metering of each filling head . The external surface of this machine is made of excellent stainless steel . Good appearance , applied to GMP standard .
Features & Benefits:
1. Available with standard conveyor or with pucks for unstable bottles
2. Flexible design
3. Very fast and easy changeover of format size
4. Docking filling station model available
5. Diving nozzle with bottom-up filling
| Model | ZTMP-6/8/10/12 | |||
| Nozzle number | 6 | 8 | 10 | 12 |
| Filling volume | 100-1000ml / 400-5000ml / 5-20L | |||
| Production capacity | 1000-4500BPH (depend on filling volume, filling material viscosity , and sample dimension) | |||
| Quantitative error | ≤ ± 0.5% | |||
| Voltage | 380/220V , 50/60Hz | |||
| Power | 2.5 | 4.5 | 5.5 | 7.5 |
| Air Pressure | 0.6-0.8Mpa | |||
| Air consumption | 0.8 | 1 | 1.2 | 1.2 |
Suitable to Fill :
About ZT-PACK :
Zhongtai Packing Machinery Company develops high quality packaging and botting pro-duction lines. From flling to capping to labeling to storing in cartons for shipping, ZT-Pack supplies you with everything you need to get your product into the hands of customers.
Our production lines are used for packaging seasonings, sauces, condiments, syrups, and other foods;
cosmetic and beauty care products such as lotions, creams, and shampoos;
pesti-cides and other agrochemicals; and oils and gases.
We help customers from over 30 countries around the world to package their products.
Since our beginnings, we've designed our packaging and bottling equipment to meet the needs of our customers. Our filling machines, capping machines, labeling machines, and carton sealing machines can fll bottles and pouches of vanying specifications with high and low viscous liquid and powdered or granular material. We've passed ISO9001:2008 quality management system certification and CE certification, and we're one of the top ten bottle flling machine suppliers in China. Many of our products have received invention and utility model patents.
Factory with 13,000 m2
Technology Team more than 10 persons
Service Team more than 10 persons
more than 80 staffs
Our growing company has the advantages of large modern manufacturing facilities and a talented team of 20 senior technical staff.
We research and develop new products using pneumatic control and photo electric transduction that increase our products' speed, precision, and life span.
At ZT-Pack, we value collaboration and innovation, working together and with our customers to devel-op better packaging solutions that keep products fresh and hold up in transit. With quality management and production processes, our packaging machines meet industry standards and satisfy those who use them. Whatever your product, we can package it.
Contact ZT-Pack today.
Focus on the bottle production packing machines the full automatic line
Mixer tanks --bottle unscramble -- filling machine --capping machine --labeling machine --carton packing machine -palletilizer
Do for the Bottle /gallons Drum Filling machine production packing line
for agrochemicals , oil , food , lubricant oil ,Home care Cleaning, house holding products , personal care products ; Painting packing
for bottles sizes :
50ml -1000ml
1L-5L
5L -30L
220L
1ton
Contact US :
Cindy He (Sales)
Company Name : Jiangsu ZhongTai Packing Machinery Co.,ltd
( ZT-PACK )
Company Address : No. 16, He Shan Huan Road, Jintan District, Changzhou City, Jiangsu Province, P. R. China
Post Code : 213200
Tel:+86-519-82112618
Fax:+86-519-82113618
