Automatic Glass Cleaner Filling Machine
Automatic Glass Cleaner Filling Machine Suitable For : Alcohol Liquid with Higher % Alcohol ( Special Made ) Disinfectant / Glass Cleaner / Air Freshener Non Foamy + High Foamy Liquids Filling Without Dropping / Foamy Solution
Product Description
Machine Name : Full Automatic Glass Cleaner Filling Machine
Type: ZGP-H
Suitable For Filling: Glass Cleaner / Disinfectant / Multi Purpose Cleaner / Hand Sanitizer Alcohol Liquid / Mouthwash / Air Freshener / Antiseptic ...Etc low viscous kinds Products
Filling Range : 100ml-5000ml
Time gravity filling machine is the most economical type of time filling machine for a limited range of applications.
This time filling machine is best suited for liquids with very thin viscosities that do not change with ambient temperature or with batch variation. Flavor Water, vinegar, soy sauce, oil, alcohol, solvent, mouth wash, cleaner, bleach are good examples and even corrosive liquid and chemicals.
The time filling machines work by a simple principle. Liquid is pumped into a holding tank above a set of pneumatically operated valves. Each valve is independently timed by the time flow filling machine master computer so that the precise amount of the liquid will flow by gravity into the containers, Independent timing of each filling valve/nozzle corrects for minor variations in flow rates so that each container is filled accurately.
An automatic product level sensing float system detects level of the liquid to maintain pressure so that liquid can flow into containers fast and evenly. When liquid level is low, pump is on, liquid is pumped into holding tank, when liquid reaches high level, pump is off.
Specifications are subject to change without notice, All rights are reserved.

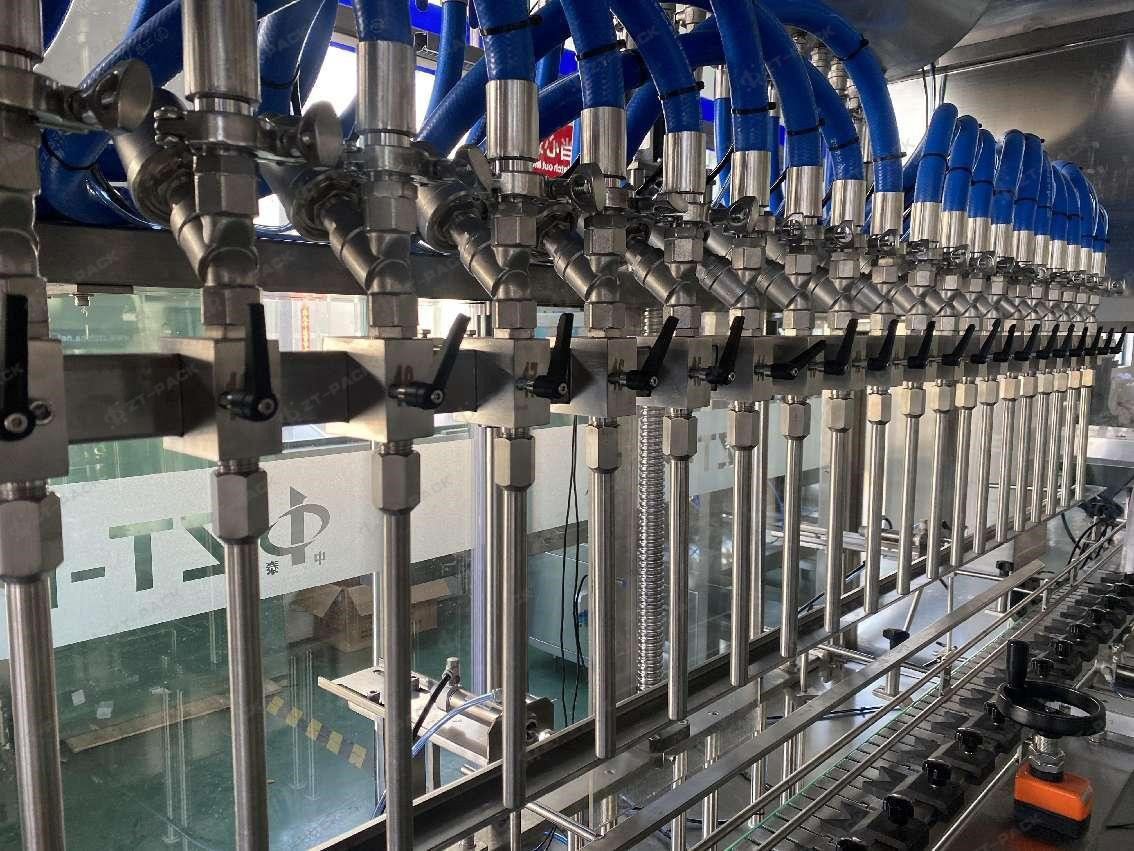

Details pictures :
Key Features ：
Heavy duty stainless steel construction
Stainless steel Reservoir
Automatic product level sensing float system
Safety guarding
Easily adjustable nozzle height settings accommodate different height containers
Pneumatic indexing gates (count in, count out)
Able to output multiple doses per container for large containers
User friendly PLC controls with touch screen HMI
Easy clean stainless steel quick connect fittings
Neck grabbers for containers wtih small opening
No bottle/No fill
Available Options ：
Various indexing systems – pin or gate,timing screw,starwheel and shuttle
Diving heads nozzles for bottom up filling to reduce foam
Drip Tray
Suitable For Filling :
How to choose time flow gravity filling machine
Output depends on fill size,viscosity of the liquid and type of container,Available with 6,8,10,12,16 filling head, if you are unsure how to choose,please let us know and our professional team will give you specific advice on the best filing machine to fit your requirements.
What product to fill
What output capacity to achieve
What material and shape of containers
What size to fill
