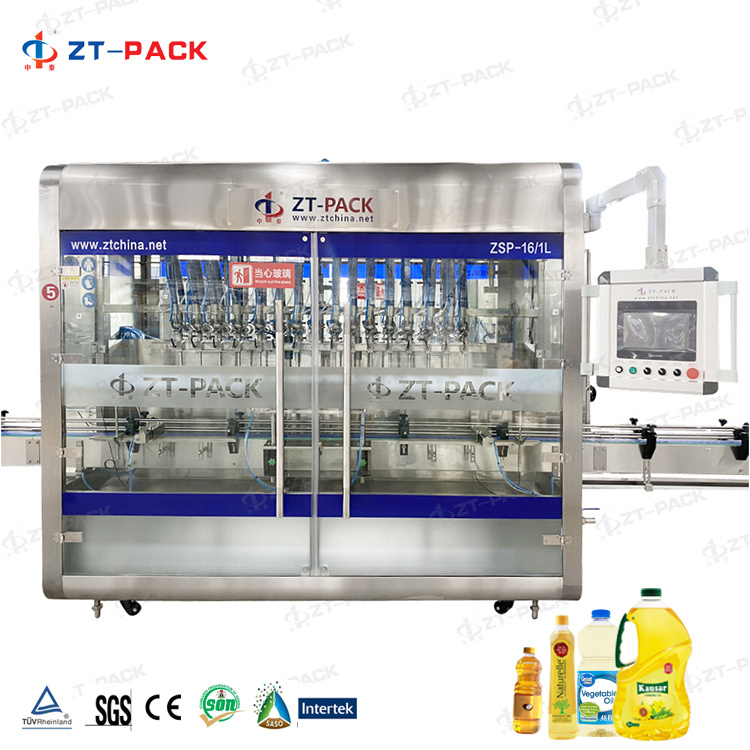

0.5L-5L Full Automatic Edible Oil Filling Machine
0.5L-5L Full Automatic Edible Oil Filling Machine Suitable For Oils Filling with High Accuracy 0.2%. Have Different System Can Be Choosen: Flow Meter / Net Weight / Piston
Product Description
Machine Name : 0.5L-5L Full Automatic Edible Oil Filling Machine
Type: ZSP-A
Suitable For Filling: Edible Oil / Cookie Oil / Sunflower Oil / Olive Oil / Peanut Oil / Rapeseed Oil /Soybean Oil ...Etc kinds Products
Filling Range : 0.5L-5L
Product description:
This machine is a piston Type filling machine with high filling accuracy.
It applies to 0.5-5L liquid for filling.
Filling system can be choose: Flow meter /piston /Net weight
Widely use for edible oil packing industries
It is produced with the GMP standards, safety, environmental hygienism, beautiful and adapt to different kinds of work place.
This filling machine combined with a bottle unscrambler, a capping machine, a labeling machine and other machines can automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.
Suitable for Fill :
Details for Filling Machine :
Special oil filling machine piston cylinder
As shown in the pictures new cylinder liner in the piston bottom will be much more fexible than the unable disassembled and washed traditional cylinder, you can see touch screen and separate piston and cylinder liner, in order to easier cleaning for residual materials, easy choose different mode for different material or color.

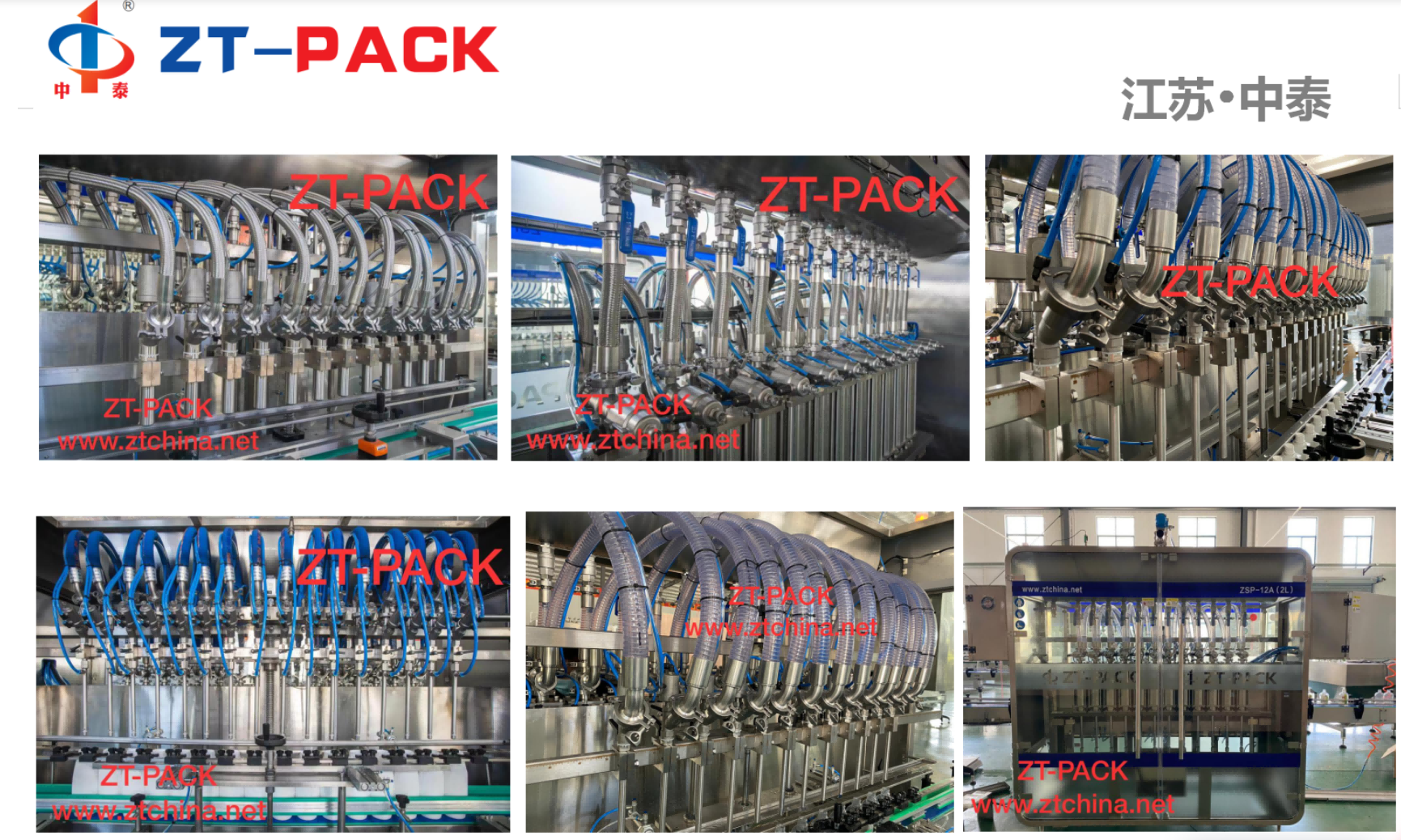

Commonly used oil filling valve
1.widely used in filling machinery,especially suitable for filling viscous material.
2.Fast filling speed, prevision and stability
3.Delicate and small,esay for arrangement of pipe arrangement
4.special seal design at the bottom of the filling nozzle, filling without dripping
5.chamfering structure on the bottom of filling head, with orientation effect and submersible filling
Key Features :
Heavy-duty stainless steel constructed
Stainless steel Reservoir
Automatic Bottling Index kit with bottle counter
Pneumatic indexing gates (count in, count out)
Automatic product level sensing float system
Easily adjustable nozzle height settings accommodate vials to gallons
User friendly PLC controls with touch screen HMI
No bottle/No fill sensor
Bottle backup sensor (downstream) delays operation until jam is cleared
Able to output multiple doses per container for large containers
Easy clean stainless steel quick connect fittings
Drip Tray
Diving heads nozzles for bottom up filling to reduce foam
Neck grabbers for containers with small opening
Specifications are subject to change without notice, All rights are reserved.
How to choose automatic piston filling machine is big challenge for customers, If your are unsure how to choose a piston filling machine,Please let me know
What product to fill
What output capacity to achieve
What material and shape of containers
What size of containers to fill
Our professional team will help you to choose
So please contact us for specific advice on the best solution for you now.
